Dropship 32A Spring Lever Push Fit Reusable 3 Way Wire Connectors ~2028

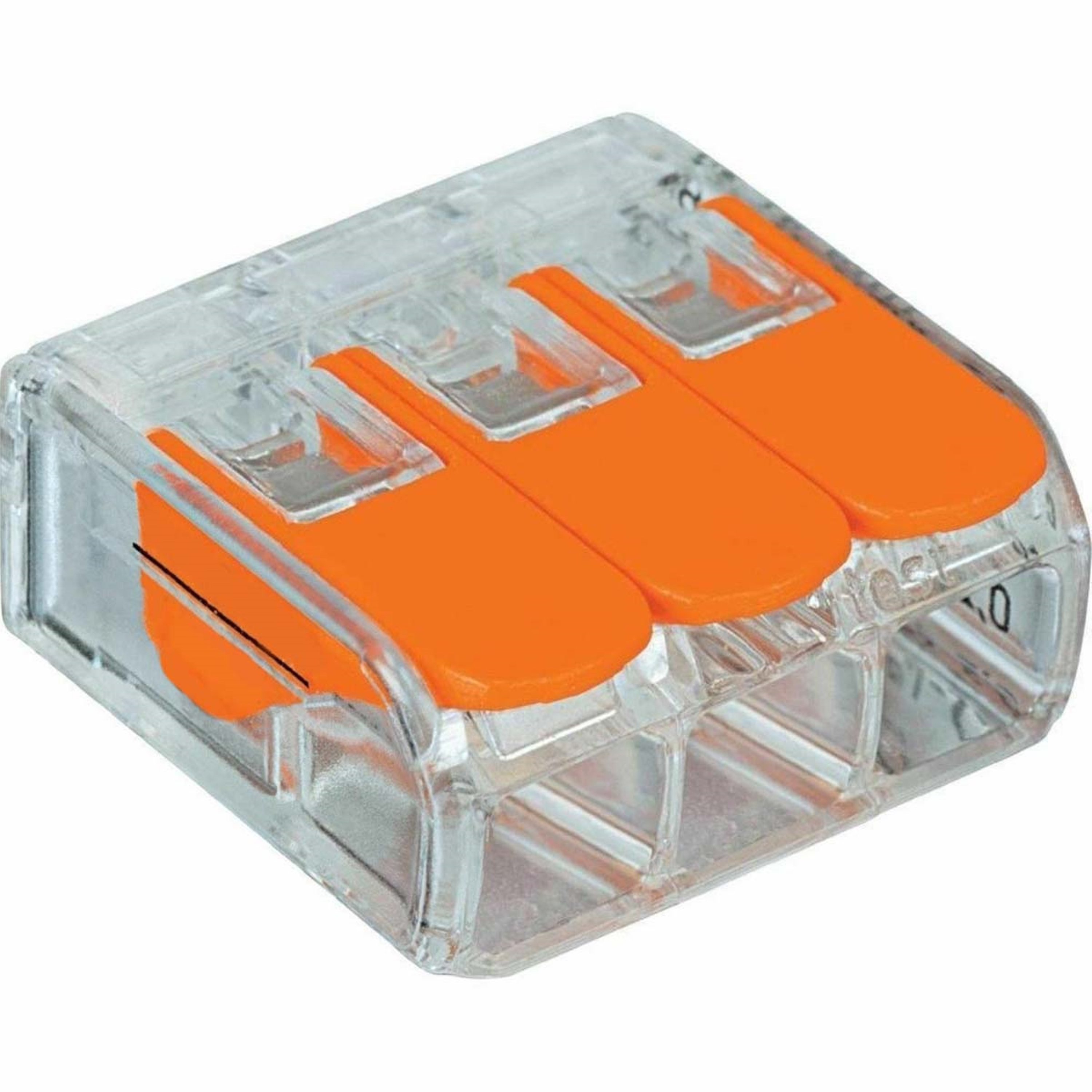

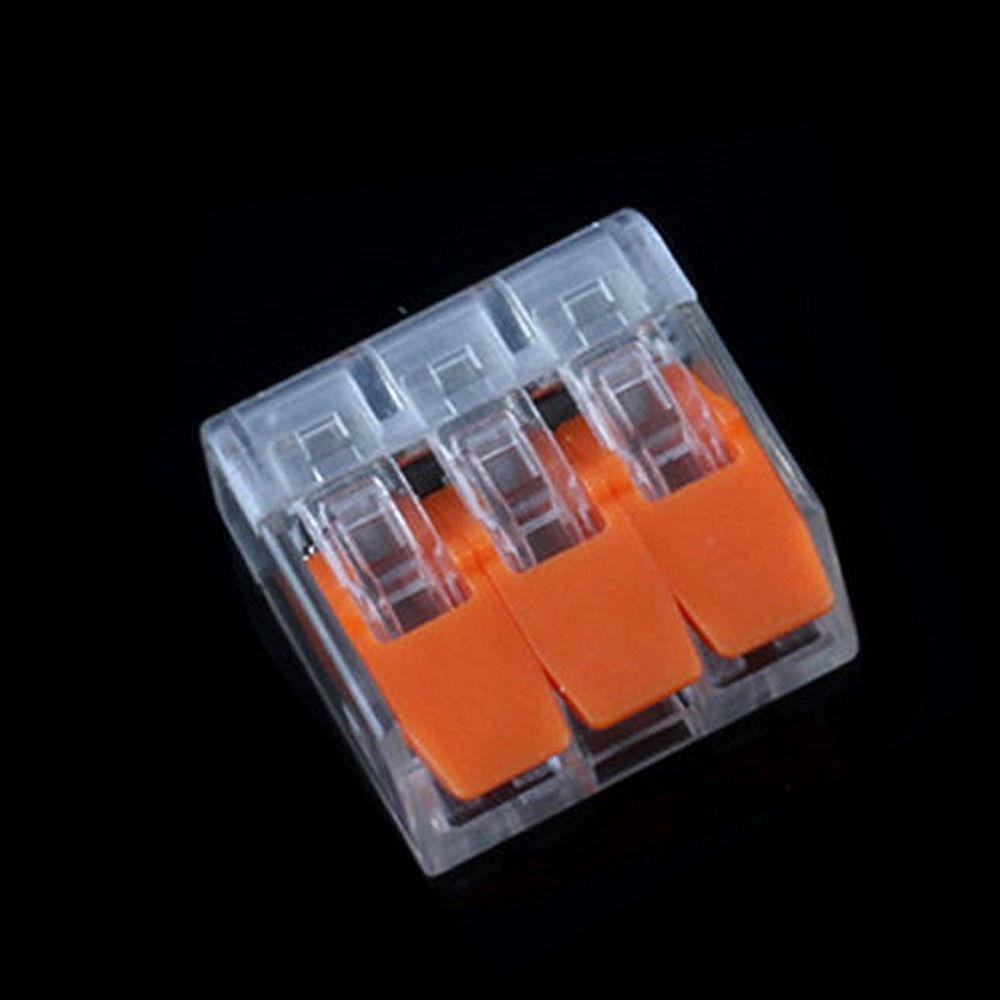

The 32A Spring Lever Push Fit Reusable 3 Way Wire Connectors are designed for both professionals and DIY enthusiasts who require a reliable and efficient solution for electrical connections. These connectors are compact, measuring 20 x 16 x 19 mm (0.78" x 0.63" x 0.74"), making them ideal for tight spaces where traditional connectors may not fit. With a maximum voltage rating of EN 400 V and a current intensity of EN 32 A, these connectors are suitable for a wide range of applications.

Key Specifications

These connectors feature a maximum isolation of 4 kV and can operate at a continuous service temperature of up to 85°C. The strip length required for proper installation is between 9-10 mm, ensuring a secure fit for various wire sizes. The connectors accommodate solid and stranded conductors ranging from 0.08 to 2.5 mm² (AWG 14), as well as flexible conductors up to 4 mm² (AWG 28 - 12).

Enhanced Security Features

One of the standout features of the 32A Spring Lever Push Fit Connectors is their emphasis on security. The design eliminates the risk of loose wires and the dangers associated with tape embrittlement. The transparent casing allows for visible inspection of the connections, providing peace of mind that everything is secure and functioning correctly.

Convenient Testing Options

These connectors also come equipped with a test hole, allowing users to measure voltage without the need to remove any tape. This feature enhances convenience and efficiency, especially in situations where quick checks are necessary.

Quick and Reliable Connections

The direct plug-in design of these connectors allows for quick and easy installation. If a connection is made incorrectly, the plug can be easily pulled out and reinserted without hassle. Each contact shrapnel is independent, ensuring compatibility with different wire diameters and providing safety against shorting.

Package Contents

The package includes only the 3 WAY wire connector, making it a straightforward solution for your wiring needs. Please note that the item color displayed in photos may vary slightly due to monitor calibration differences.
