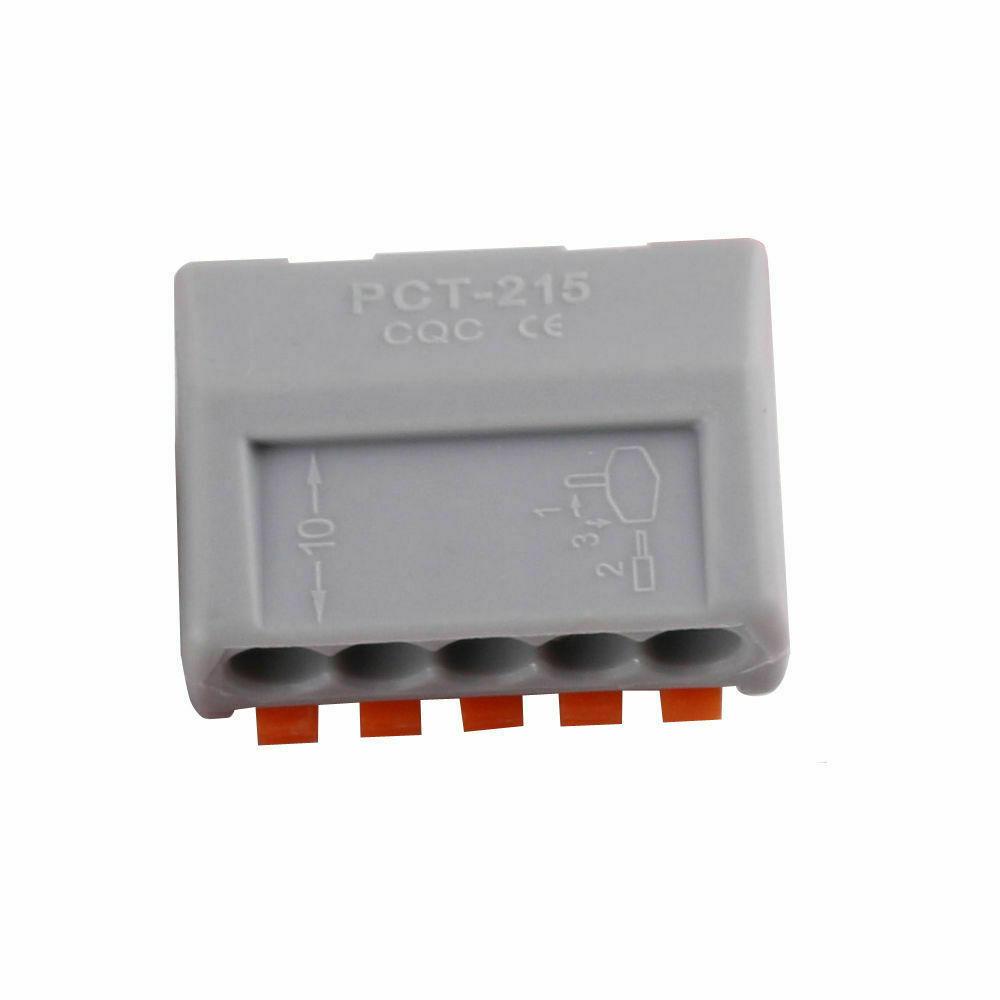

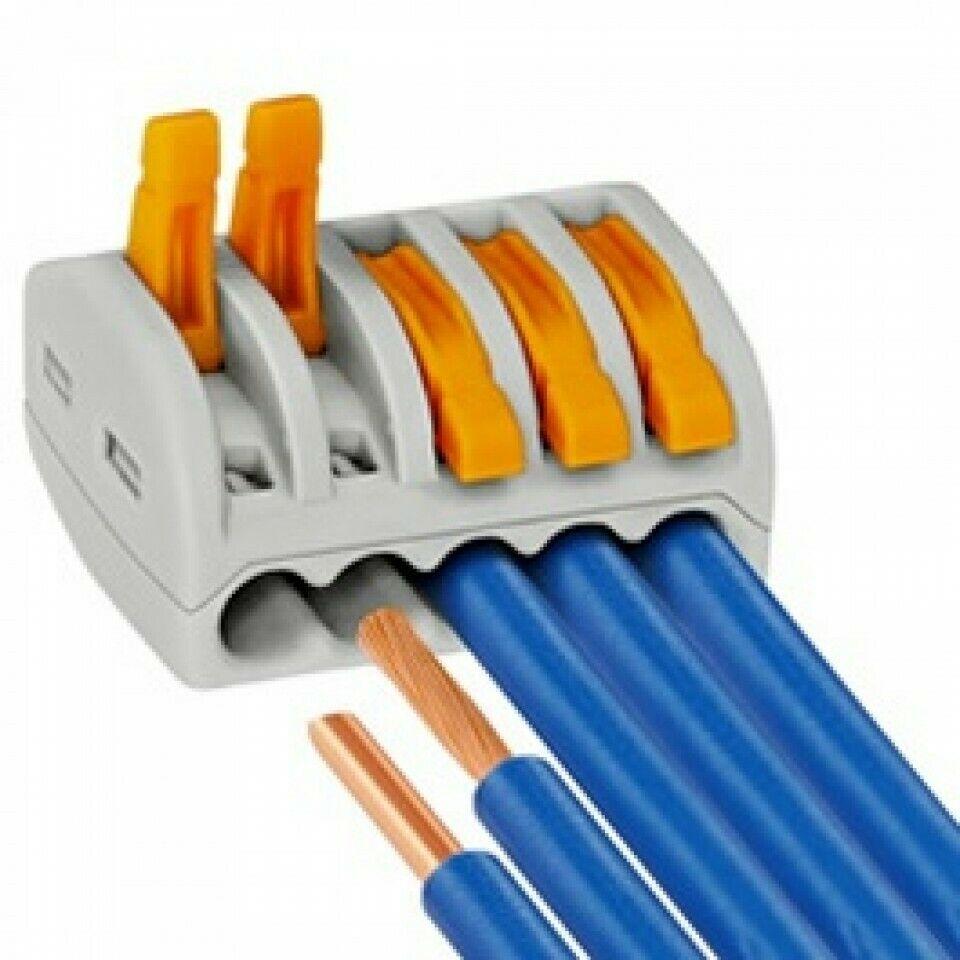

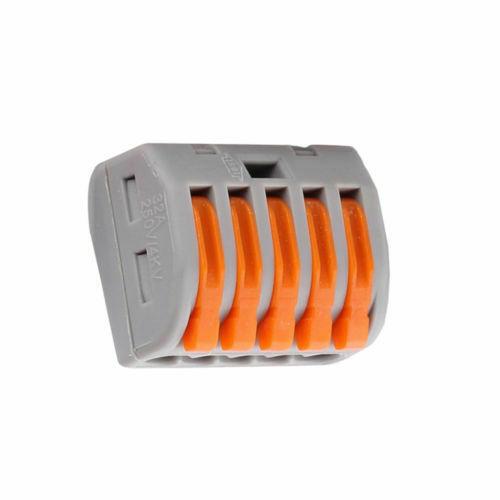

Dropship 5 Way Reusable spring lever terminal block electrical cable clamp wire

The 5 Way Reusable Spring Lever Terminal Block is an essential component for anyone working with electrical wiring. This compact connector is designed to provide secure and reliable connections for various types of electrical cables. With its clear and orange color scheme, it not only offers functionality but also visibility, allowing users to easily identify connections.

Specifications

Measuring at 20 x 26 x 19 mm (0.78" x 1.02" x 0.74"), this terminal block is designed to accommodate a maximum voltage of EN 400 V and a current intensity of EN 32 A. It boasts a maximum isolation of 4 kV, ensuring safety during operation. The terminal block can withstand a continuous service temperature of up to 85°C, making it suitable for various environments.

Versatile Compatibility

This terminal block is compatible with a range of conductor sizes. It supports solid and stranded conductor sizes from 0.08 to 2.5 mm² (AWG 14), and flexible conductor sizes from 0.08 to 4 mm² (AWG 28 - 12). This versatility makes it an ideal choice for different electrical applications.

Key Features

One of the standout features of the 5 Way Reusable Spring Lever Terminal Block is its security. The design ensures that there are no loose wires, reducing the risk of tape embrittlement and enhancing safety. Additionally, the transparent casing allows for visible inspection of connections, providing peace of mind.

Convenience is another significant advantage of this terminal block. It includes a test hole, enabling users to measure voltage without the need to remove any tape. This feature saves time and effort, making electrical work more efficient.

Quick installation is facilitated by the direct plug design. If a connection is made incorrectly, it can be easily pulled out and reinserted without hassle. This user-friendly approach is ideal for both professionals and DIY enthusiasts.

Reliability is paramount in electrical connections, and this terminal block delivers. Each contact shrapnel is independent, allowing it to fit different wire diameters securely. This design minimizes the risk of safety shorting, ensuring that your electrical projects are safe and effective.

Package Contents

The package includes the 5 WAY wire connector only, making it a straightforward addition to your electrical toolkit. Please note that the item color displayed in photos may vary slightly due to monitor calibration differences.

For more information regarding usage and safety, please refer to our Terms and Conditions section.
