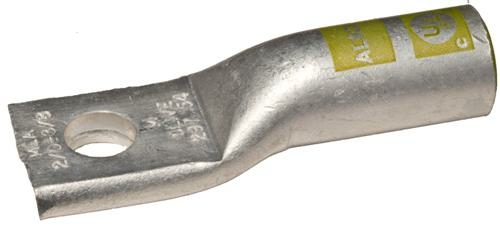

Aluminum Long Barrel 1 Hole Compression Lugs MLA1/0-5/16 - A highly-conductive One Hole Compression Lug.
Features- One hole compression lugs accept both aluminum and copper conductors.
- Connector bores are coated with oxide inhibitor &capped.
- Compression lug is made of high-conductivity seamless aluminum.
- Uniform bright electro-tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity.
- Color Coded for easy identification.
- Marked with die index.
- Crimp marks indicate proper crimp locations.
- UL486B Listed AL9CU.
- Listed for 35 KV when properly installed.
- UL Listed.
- Dimension Measurements = Inches &(Millimeters)
Specification- Wire Range: 1/0 Str.
- Stud Size: 5/16 in.
- Color Code: Tan.
- Inside Diameter: .39(9.9).
- Outside Diameter: .63(16.0).
- Barrel Length: 1.2(30.5).
- Item weight - 0.0584 lbs.
