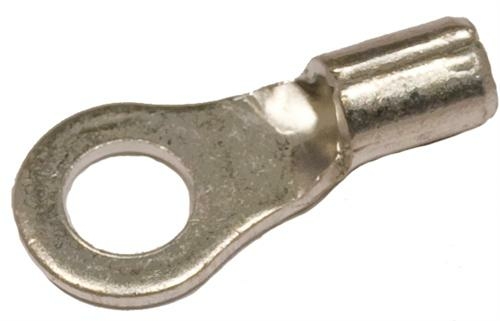

Non-Insulated Ring Terminals - 8Awg Wire, 5/16" Stud - Non-Insulated Wiring Terminals for electrical work.
Features- Non Insulated wiring terminal material - Hi-Strength Electrolytic Copper
- Electro-Tin Plated
- Brazed Seam
- Serrated barrel with brazed seam provides excellent electrical contact &resistance to pull-out forces
- Maximum Electric Current - 22 Awg - 9 Amp, 20 Awg - 12 Amp, 18 Awg - 17 Amp, 16 Awg - 18 Amp, 14 Awg - 30 Amp, 12 Awg - 35 Amp, 10 Awg - 50 Amp, 8 Awg - 70 Amp, 6 Awg - 95 Amp, 4 Awg - 125 Amp, 2 Awg - 170 Amp
- 150°C 600 Volts Max
- Wiring terminal is cULus Listed
Specification- Wire Size - 8
- Stud Size - 5/16 in.
- Pack of - 100
- Item weight - 0.77 lbs.
