Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field skewable and slopeable . SUL/SUR hangers provide a 45 degree connection between a joist and header.

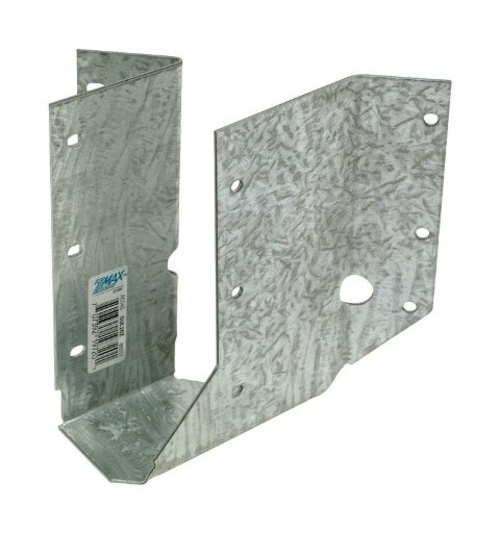

Features- 2 x 16 in. Galvanized Building Materials Skewed Left Joist Hanger
- Can accommodate joists skewed 40 to 50 degrees
- Angled nail slots direct nails for proper installation
- Made from 16-Gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Install with 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
Specifications- Material: Steel
- Dimension: 4.5" H x 4.5" W x 5" L
- Weight: 0.6 lbs
