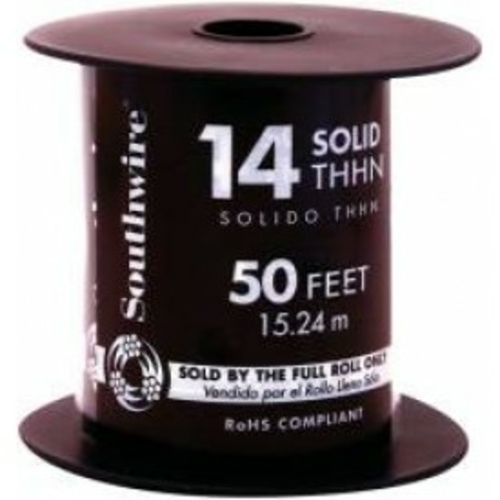

Dropship Southwire 136838 Thhn Solid 14Gauge Grn,50 Ft.

Southwire SIMpull THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the 2008 National Electrical Code. When used as Type THHN, or T90 Nylon conductor is suitable for use in dry locations at temperatures not to exceed 90°C. When used as Type THWN-2 or TWN75, conductor is suitable for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil. When used as Type MTW, conductor is suitable for use in wet locations or when exposed to oil at temperatures not to exceed 60°C or dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79). Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material or when used asT90. SIMpull, No Lube Required. Southwire SIMpull THHN or MTW (also AWM) meet or exceed:

All applicable ASTM specifications

UL Standard 83, 1581, and 1063(MTW)

T90 Nylon/TWN75 sizes through 500 kcmil Standard C22.2 No. 75-08

NOM-ANCE 90° C

Federal Specification A-A-59544

National Electrical Code, NFPA 70, 2011 Edition

VW-1 - Sizes 14 through 1 AWG

CT Use - UL 1685, Sizes 1/0 AWG and larger

FT1 - Sizes through 500 kcmil

RoHS/REACH Compliant

Sunlight Resistant - Marked and listed in all colors sizes 2 AWG and larger

NEMA WC 70 Construction Requirements
