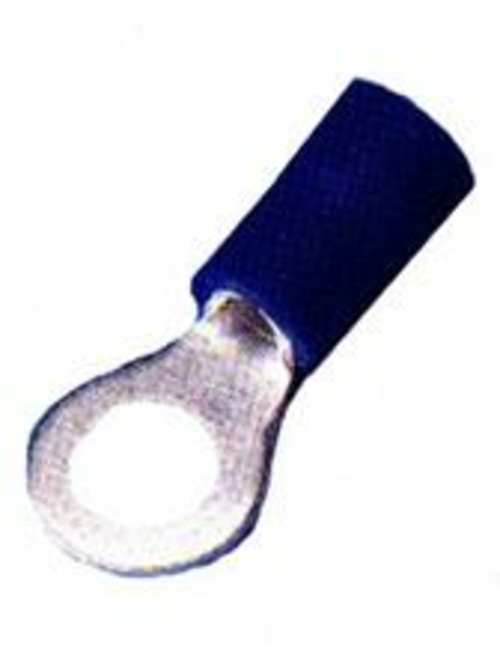

Vinyl Insulated Ring Terminals 25 Pack - 16-14 Wire, 8 Stud - Our Ring-style Wiring Terminals are quick and easy to use.
Features- Ring terminals are vinyl Insulated
- Color Coded insulation for easy identification
- Manufactured from high strength copper alloy
- Electro-tin plated for corrosion resistance
- Easy entry expanded insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Terminal barrel has butted seam
- Serrated barrel provides excellent electrical contact&resistance to pull-out forces
- 221°F (105°C) 600 Volts Max
- Maximum Electric Current - 22 Awg - 9 Amp, 20 Awg - 12 Amp, 18 Awg - 17 Amp, 16 Awg - 18 Amp, 14 Awg - 30 Amp, 12 Awg - 35 Amp, 10 Awg - 50 Amp
- cULus Listed
- Packed in Zip Lock plastic bags with punched hole for pegboard hanging
Specification- Color - Blue
- Wire Size - 16-14
- Stud Size - 8
- Pack of - 25
- Item weight - 0.05 lbs
