Product description
DIY Supplies: Electrical
Model Number: XL830L
AC Voltage: 200-600V ±(1.2%+8dgt)
Measuring Capacitance Range: /

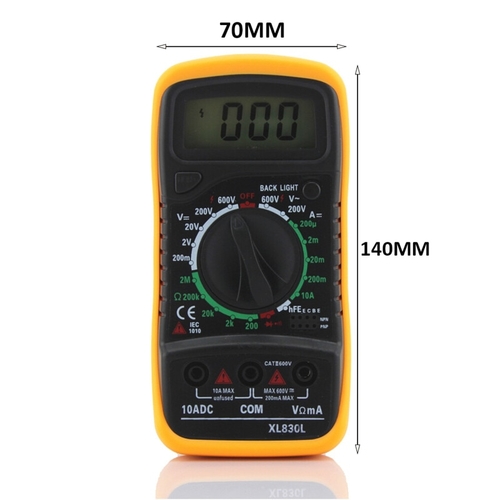

Dimensions: 131*52*32mm
Measuring Resistance Range: 200Ω-2MΩ ±(0.8%+2dgt)
Display Type: Digital Display
DC Current: 200uA-10A ±(1.0%+2dgt)
AC Current: 10A
DC Voltage: 200mV-600V ±(0.5%+2dgt)
Operating Mode: Manual measurement of current and voltage resistance HFE
Operating Temperature: 0 - 50 ℃
Measuring Inductance Range: 2-20-200-600V ±0.5%

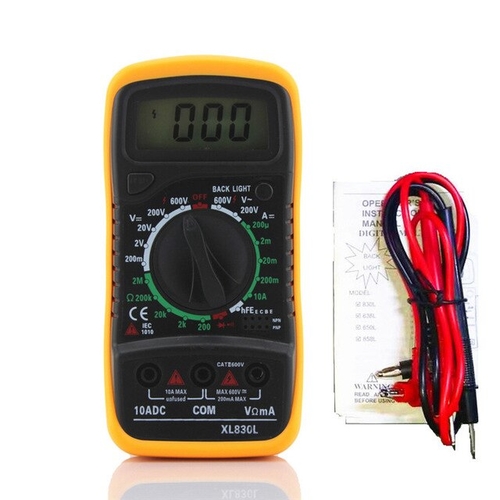

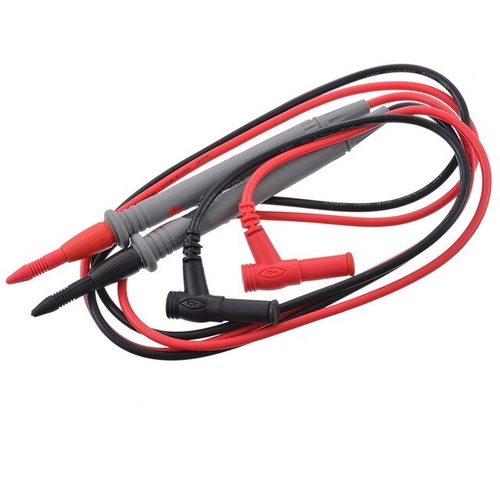

Standard accessories: battery, test leads, English manual, color box,
note: whitout battery

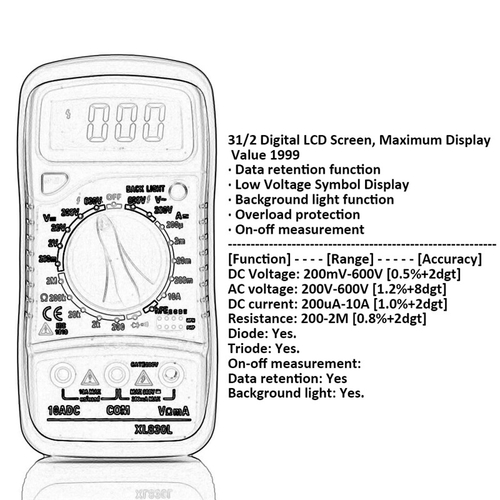

Feature 1: 3 1/2 digital LCD screen, maximum display value 1999
Feature 2: Data retention function
Feature 3: Low voltage symbol display

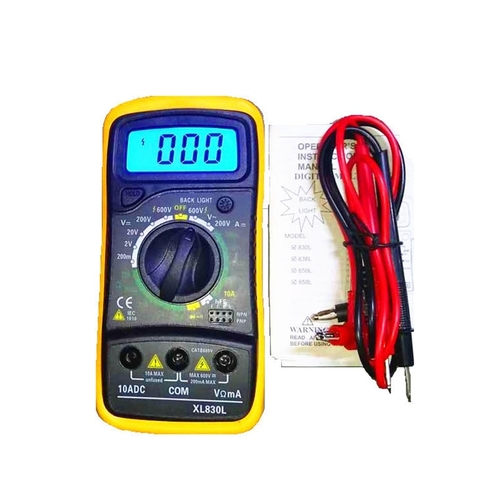

Feature 4: Backlight function
Feature 5: Overload protection
Feature 6: On-off measurement
