Product description

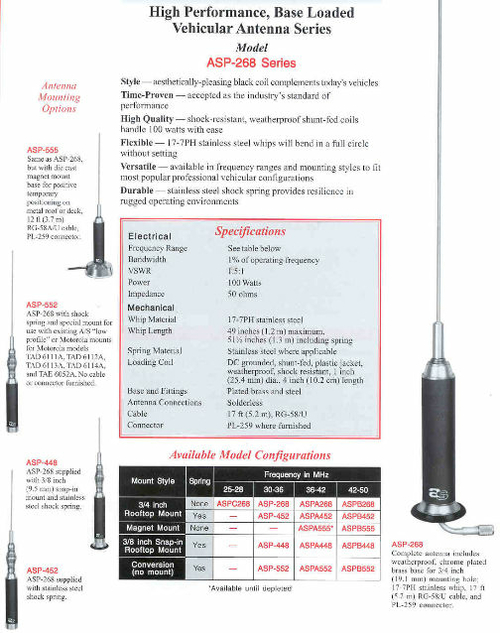

Low band, 36-42 mhz high performance antenna with stainless steel shock spring.
Includes weatherproof, chrome plated brass base for 3/4" (19.1 mm) mounting hole.
17-7ph stainless whip.
17' (5.2m) rg-58/u cable, and pl-259 connector - shock resistant, weatherproof shunt fed coils handle 100 watts with ease.
Bandwidth: 1% of operating frequency.
VSWR: 1.5:1 .
Impedance: 50 ohms.
Whip Length: 51 1/2" including spring.
Loading Coil: Dc Grounded, shunt-fed, plastic jacket, weatherp roof, shock resistant, 1" (25.4 mm) diameter, 4" (10.2 cm) length.
Base And Fittings: Plated brass and steel.
Antenna Connections: Solderless.
