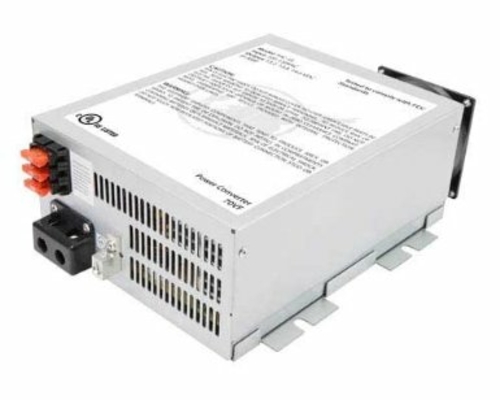

Dropship Thor THC-75 75 Amp Converter with 3 Stage Charger

This charging system provides an optional automatic charging system in three steps. 1.A fast charge to bring a good, drained battery back up to full voltage rapidly ("Boost"). 2. A standard charge to bring the battery up to a full charge at a safe rate to prolong the life of the battery and provide power to run 12V lighting and appliances in the vehicle/device ("Normal"). 3. A trickle charge to keep the battery fresh during times of load inactivity ("Storage"). The charger automatically changes modes to accommodate changes in conditions.

DC Output Voltage: (No Load)approx.13.6VDC).

Output Voltage Tolerance: (No Load) + or -.7%.

Output Amperage: Max Continuous 75Amps.

Output Voltage: (Full Load) approx. >13.4V/ 14.4 (DC).

Maximum Power Output: Continuous 1065 Watts.

Input Voltage Range: 105-135 AC.

Input Voltage Frequency: 47-63.

Maximum AC Current: @108VAC 12 Amps.

Typical Efficiency: >85%.

Max Inrush Current: Single Cycle 40 Amps.

Short Circuit Protection: Yes.

Overload Protection: >100%.

Line Regulation: 100 mV rms.

Load Regulation:

Fan Control: Proportional.

Thermal Protection: YES.

Working Temperature: 0-45C.

Storage Temperature;- -20 to 80C.

Withstand Voltage: 1240V leads.

Dimensions: 7.15 x 10.5 x 3.45".
