Dropship 433MHz CC1101 RF Transceiver Module for Arduino

The 433MHz CC1101 RF Transceiver Module for Arduino is an essential component for any electronics enthusiast or professional looking to implement wireless communication in their projects. This module is built around the genuine Texas Instruments CC1101 chipset, renowned for its reliability and efficiency in low-power applications. With its compact design and impressive transmission capabilities, this module is perfect for a variety of uses, from remote controls to sensor networks.

Key Features of the CC1101 Module

One of the standout features of the CC1101 RF Transceiver Module is its operating frequency of 433MHz. This frequency is widely used in various wireless applications, making it a versatile choice for hobbyists and engineers alike. The module's compact size, measuring just 21 x 12mm, allows it to fit seamlessly into small projects without taking up too much space.

With a power output of 10mW, the CC1101 module can transmit signals over an impressive distance of up to 1000 meters in open space. This makes it ideal for applications that require long-range communication, such as remote monitoring systems, home automation, and IoT devices. The module is designed to operate efficiently, ensuring that it consumes minimal power while delivering maximum performance.

Powering the CC1101 Module

The CC1101 RF Transceiver Module can be powered using a 3.3V DC power supply. This can be achieved through an external power source or directly from an Arduino board, making it easy to integrate into your existing projects. The onboard power management features ensure that the module operates within safe voltage levels, providing a reliable solution for your wireless communication needs.

Applications of the CC1101 RF Transceiver

This module is suitable for a wide range of applications, including:

• Wireless sensor networks
• Remote control systems
• Home automation projects
• Data transmission for IoT devices
• Wireless audio/video transmission

Its versatility and ease of use make it a popular choice among makers and developers. Whether you are building a simple remote control or a complex sensor network, the CC1101 module provides the performance and reliability you need.

Getting Started with the CC1101 Module

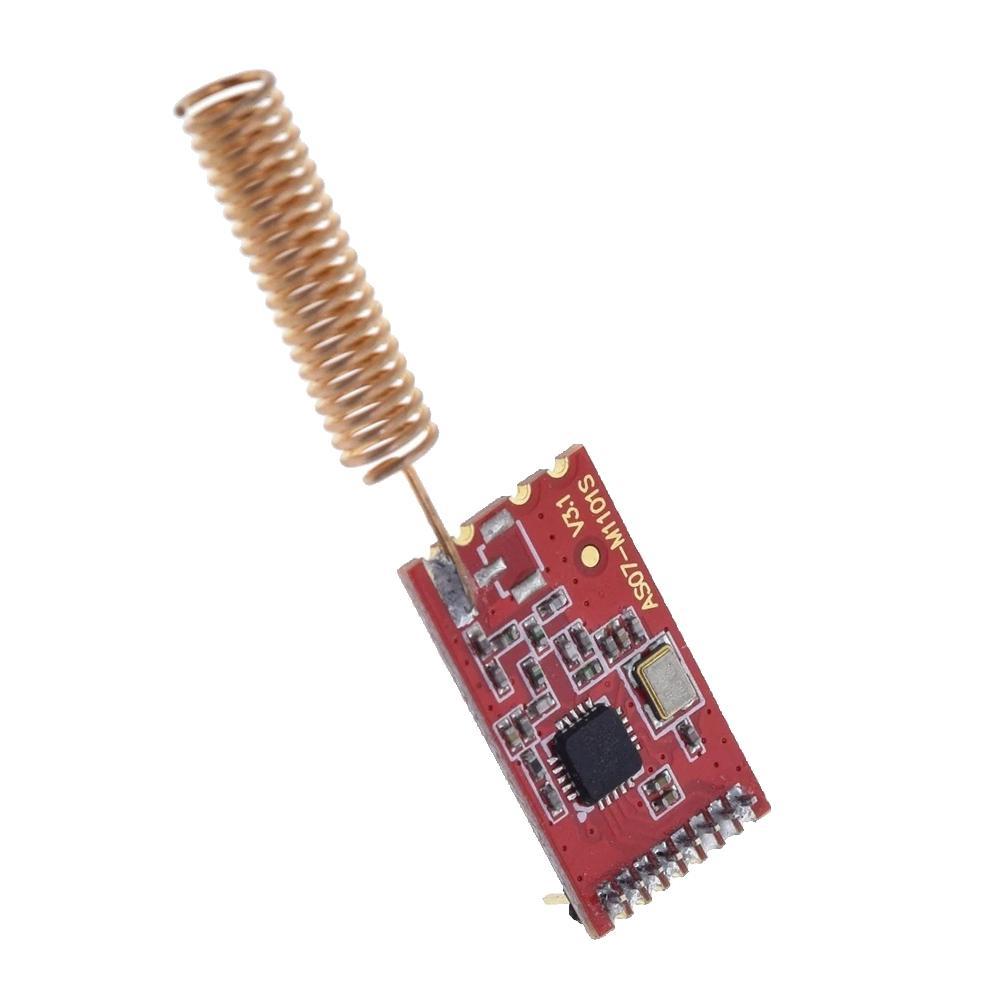

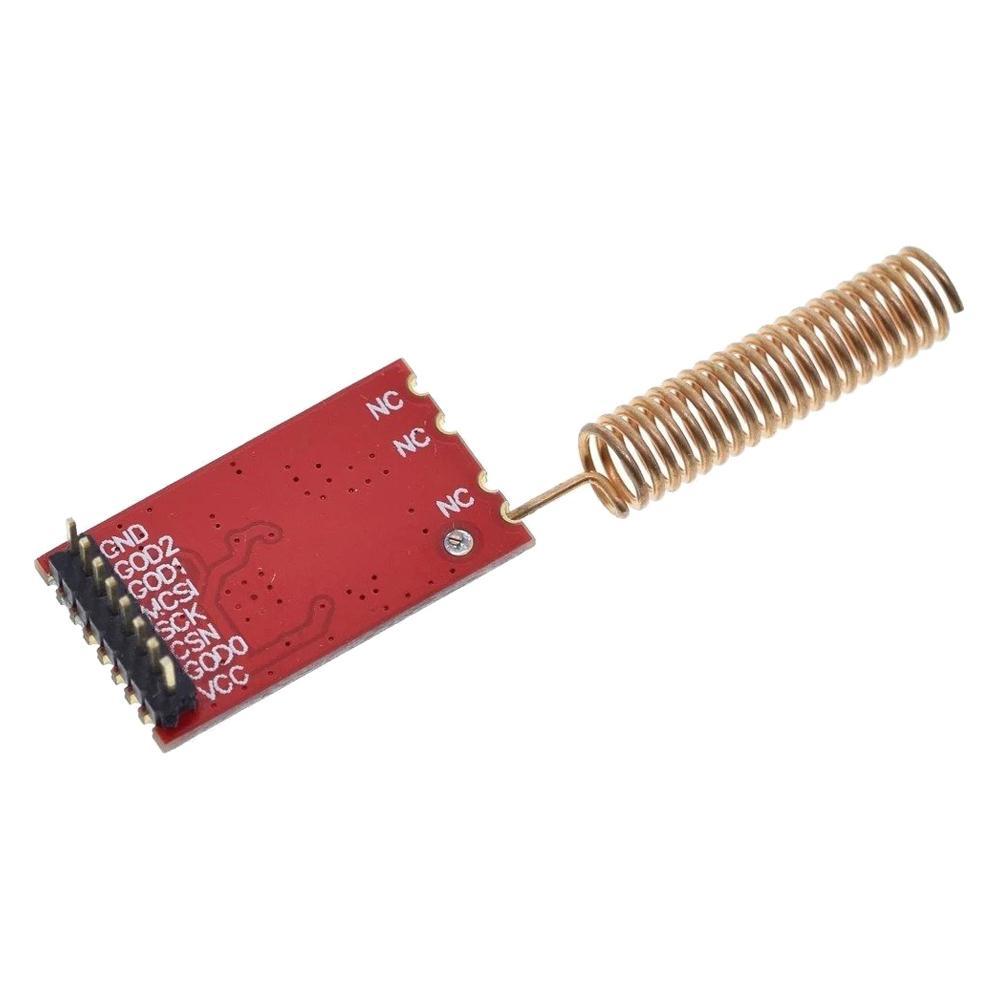

To get started with the 433MHz CC1101 RF Transceiver Module, you will need an Arduino board and some basic components. The module comes with an antenna pre-soldered to the PCB, which simplifies the setup process. You can easily connect the module to your Arduino using jumper wires, following the pinout specifications provided in the datasheet.

Once connected, you can use various libraries available for Arduino to communicate with the CC1101 module. These libraries provide functions for sending and receiving data, making it easy to implement wireless communication in your projects. With a little programming knowledge, you can create a wide range of applications that leverage the capabilities of this powerful RF transceiver.

Conclusion

In summary, the 433MHz CC1101 RF Transceiver Module for Arduino is a powerful and efficient solution for wireless communication. Its compact size, long-range capabilities, and low power consumption make it an ideal choice for a variety of applications. Whether you are a hobbyist or a professional, this module can help you bring your wireless projects to life.
