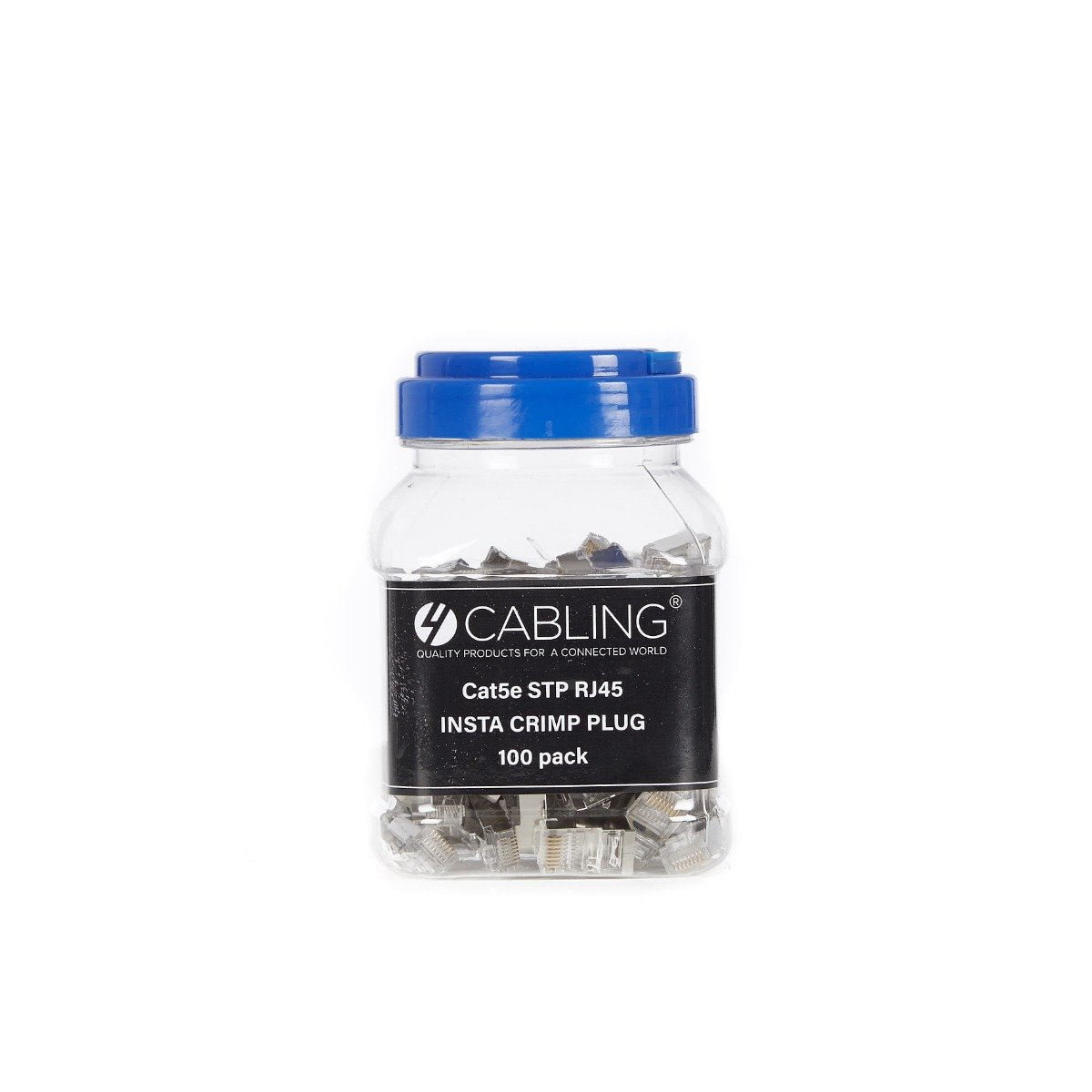

Dropship CAT5e STP RJ45 Insta Crimp Plug 100 pack

The CAT5e STP RJ45 Insta Crimp Plug 100 pack is an essential component for anyone working with CAT5e shielded cables. Designed specifically to work with the Insta Crimp Tool 001.006.0520, these plugs simplify the process of twisted pair termination. With the ability to insert wires through the connector and out the front, technicians can easily verify the proper wiring order, ensuring a reliable connection every time.

One of the standout features of these Insta Crimp plugs is their electrical performance. The design allows for optimal seating of the connector over the cable jacket, which minimizes the distance between wire twists and contacts. This results in enhanced performance and reliability, making these plugs a top choice for networking professionals.

Features & Specifications

The CAT5e STP RJ45 Insta Crimp Plugs come with a variety of features that make them a superior choice:

• RoHS compliant
• 50-micron gold plated contacts for improved conductivity
• Certification: UL, IEC 60603-7
• UL applications: Max. 250V, AT 2 Amps
• Dielectric Withstanding Voltage: 1000V AC
• Insulation Resistance: 100MΩ
• Termination: Max. Resistance 20mΩ

Installation Instructions

Installing the CAT5e STP RJ45 Insta Crimp Plugs is straightforward. Follow these steps for a successful termination:

1. Strip the outer cable sheath approximately 30mm.
2. Cut off any separator or nylon string flush with the cable sheath, being careful not to nick the conductors.
3. Fan out the 8 wires and arrange them in the color code 568A. Ensure the 8 wires are flat and neatly lined up next to one another.
4. Insert the wires through the crimp tool with excess wire protruding out the front.
5. Insert the plug into the correct position on the crimping tool.
6. Squeeze the tool firmly; this will terminate the wires and cut off any excess cable length.

Warranty Information

We stand behind our products, which is why the CAT5e STP RJ45 Insta Crimp Plugs come with a 3-year limited warranty. This warranty ensures that you can purchase with confidence, knowing that your investment is protected.
