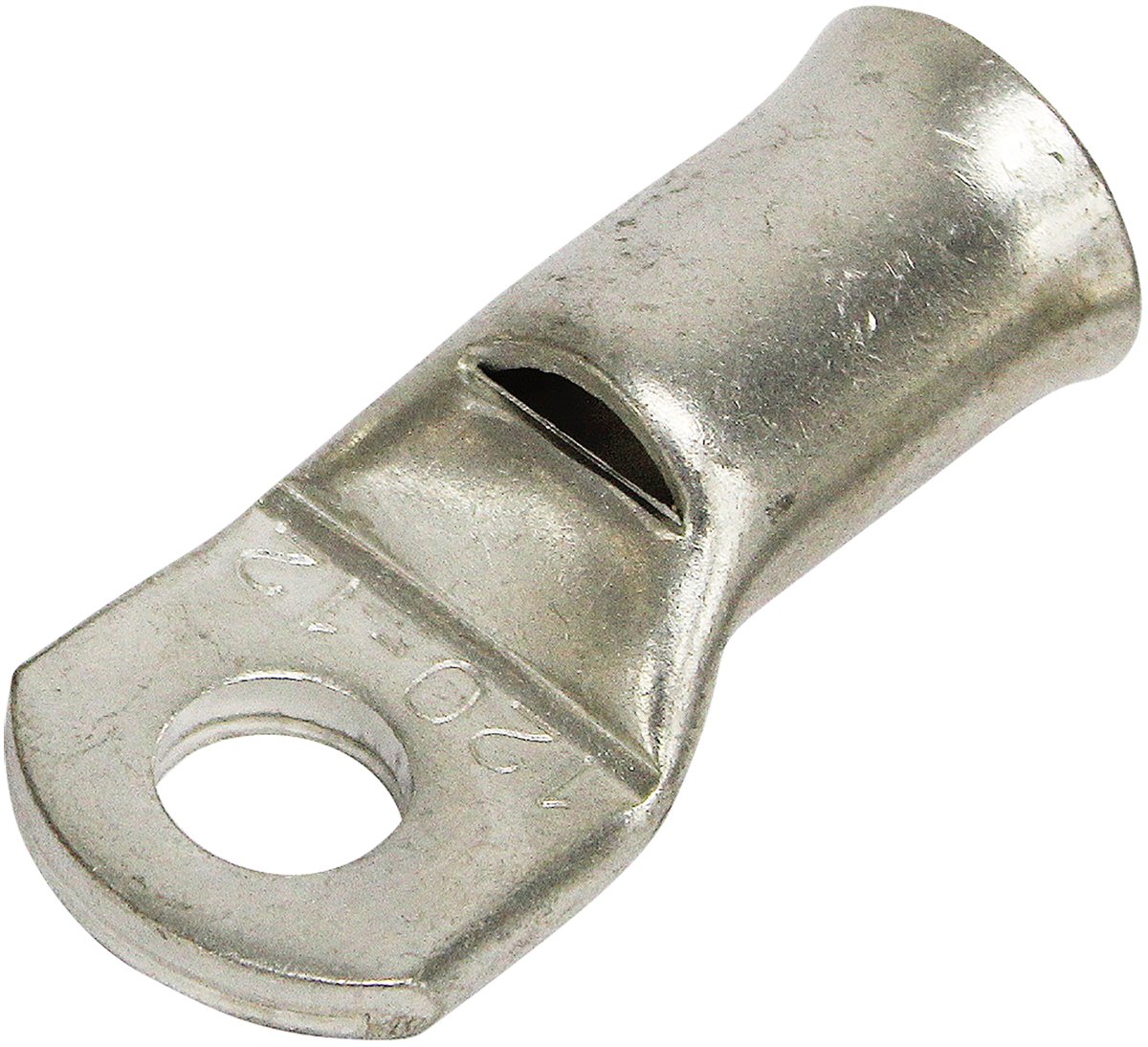

Dropship Copper Lug Bell Mouth 70mm² M12 Stud - 25 Pack

The Copper Lug Bell Mouth 70mm² M12 Stud - 25 Pack is an essential component for anyone working with electrical systems. These copper cable lugs are designed to provide a secure and efficient connection between electrical cables and various equipment, such as busbars and electric motors. With their high conductivity, these lugs can handle very high currents, making them ideal for a wide range of applications.

Features and Benefits

Our Copper Lugs are not only functional but also designed with user convenience in mind. They come in a wide range of sizes, ensuring that you can find the perfect fit for your specific needs. The lugs can be easily crimped using either a handheld crimper or a hydraulic crimper, allowing for flexibility in your installation process. Additionally, the design allows for easy insertion of cables, making the installation process quick and hassle-free.

Specifications

Each pack contains 25 copper lugs, each with a conductor size of 70mm² and an M12 stud. The internal diameter size is 11.3mm, with a palm width of 19mm and a barrel length of 24mm. The full length of each lug is 51mm, and the A/F hex size is 11.5mm. Made from Copper Grade C11000, these lugs are built to last.

Conductive Material

Our Copper Lugs are made from 99.9% pure copper, ensuring maximum conductivity. The oxygen content is kept at 30, and the tensile strength is a minimum of 205 Mpa. The ductile rating is 40%, and the final metal state is fully annealed. The electroplating material used is tin, also 99.9% pure, with other metals including lead and antimony, and a thickness of 5-10 microns.

Performance

These lugs boast a total conductivity of 99.9% IACS and a total resistivity of 1.72 micro-ohm cm. They can operate in a wide temperature range from -55°C to 155°C, thanks to the use of oxygen-free copper. This makes them suitable for various environments and applications.

Compliance and Quality Assurance

Our Copper Lugs comply with the Australian and New Zealand standard AS/NZS4325 Part 1:1995, ensuring that they meet the highest quality and safety standards. We take pride in being 100% Aussie owned and operated, with a dedicated expert advice and sales team ready to assist you.

Why Choose Us?

• Trusted by over 100,000 Aussie customers
• ISO 9001 certified and approved supplier for NSW & QLD Government
• Massive stock levels ready to go
• Lightning-fast delivery nationwide
• Warranty and easy return policy
• Secure online shopping available 24/7

Whether you are a professional electrician or a DIY enthusiast, the Copper Lug Bell Mouth 70mm² M12 Stud - 25 Pack is a reliable choice for your electrical connection needs. With its high-quality construction and compliance with industry standards, you can trust that these lugs will perform exceptionally well in any application.
