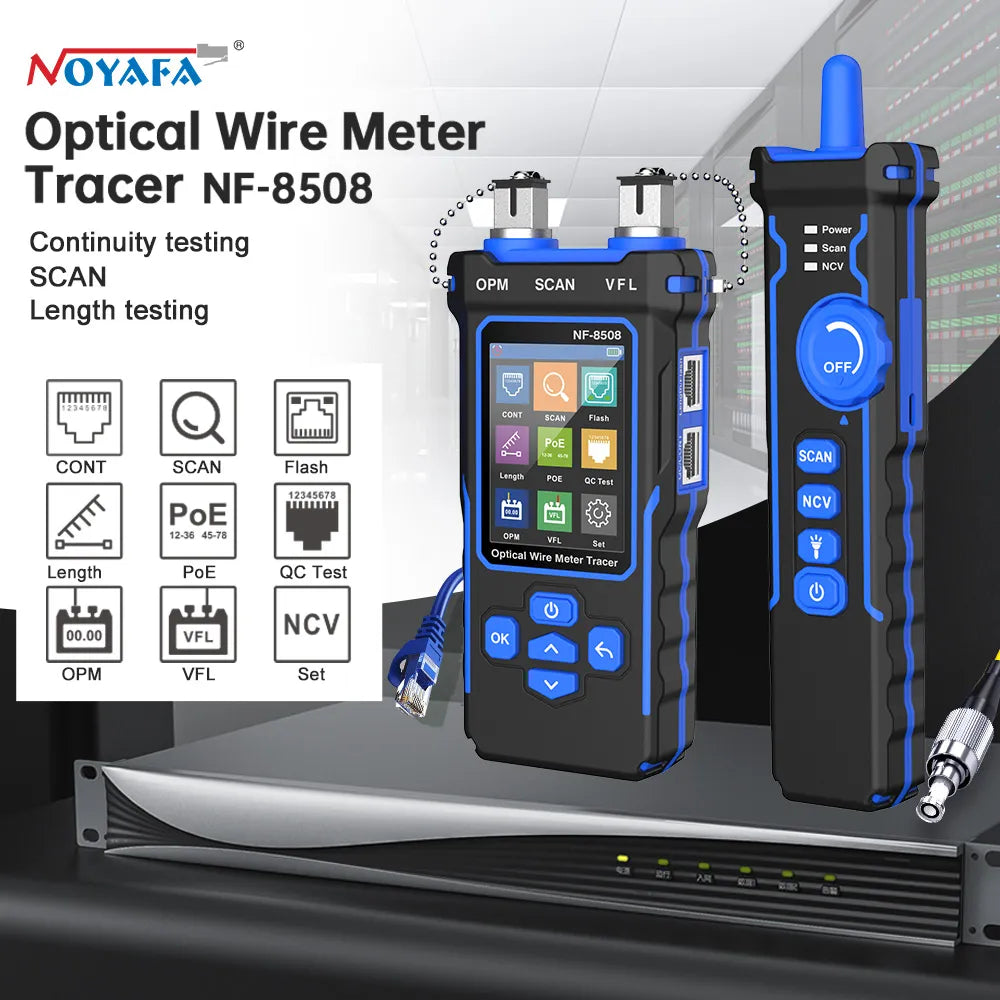

Dropship NF-8508 Network Cable Tester Optical Wire Meter Tracer LCD Digital

The NF-8508 Network Cable Tester is an essential tool for professionals in the telecommunications and networking fields. This advanced device is designed to test and troubleshoot various types of network cables, ensuring optimal performance and connectivity. With its LCD digital display, users can easily read results and navigate through the various testing functions.

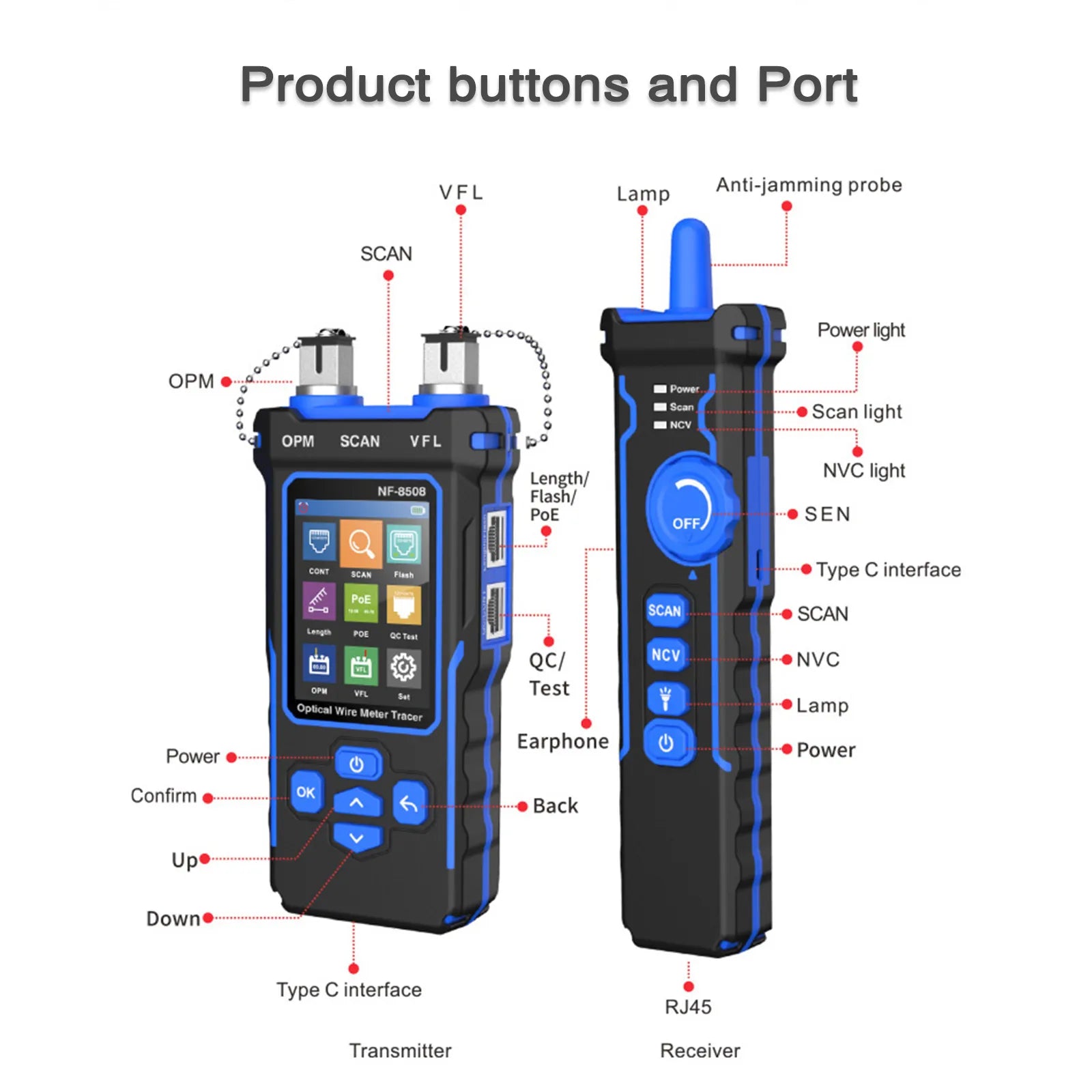

Key Features of the NF-8508

The NF-8508 offers a comprehensive range of features that make it a standout choice for network cable testing. It includes a transmitter testing function that covers cable continuity testing, cable scanning, port flashing, and cable length measurement. Additionally, it has a built-in Power over Ethernet (PoE) test feature that automatically identifies midspan and endspan power by utilizing all 8 cores of the cable.

One of the standout features of the NF-8508 is its Optical Power Meter (OPM). This function allows users to switch between various wavelengths, including 850, 1300, 1310, 1490, 1550, and 1625nm. The unit can display measurements in dBm, dB, mw, uw, or nw, providing flexibility for different testing scenarios.

Visual Fault Location Function

The NF-8508 also includes a Visual Fault Location (VFL) function, which is crucial for detecting and locating fiber breaks and other issues such as poor connections, fiber bends, or cracks. This feature enhances the troubleshooting process, allowing technicians to quickly identify and resolve problems.

Receiver Functionality

The receiver of the NF-8508 is equipped with sensitivity adjustment capabilities, allowing it to work effectively with both shielded and non-shielded network cables up to 300 meters. It also features Non-contact Voltage Detection (NCV), which enables users to detect AC voltage in household electrical wiring safely.

Battery and Power Management

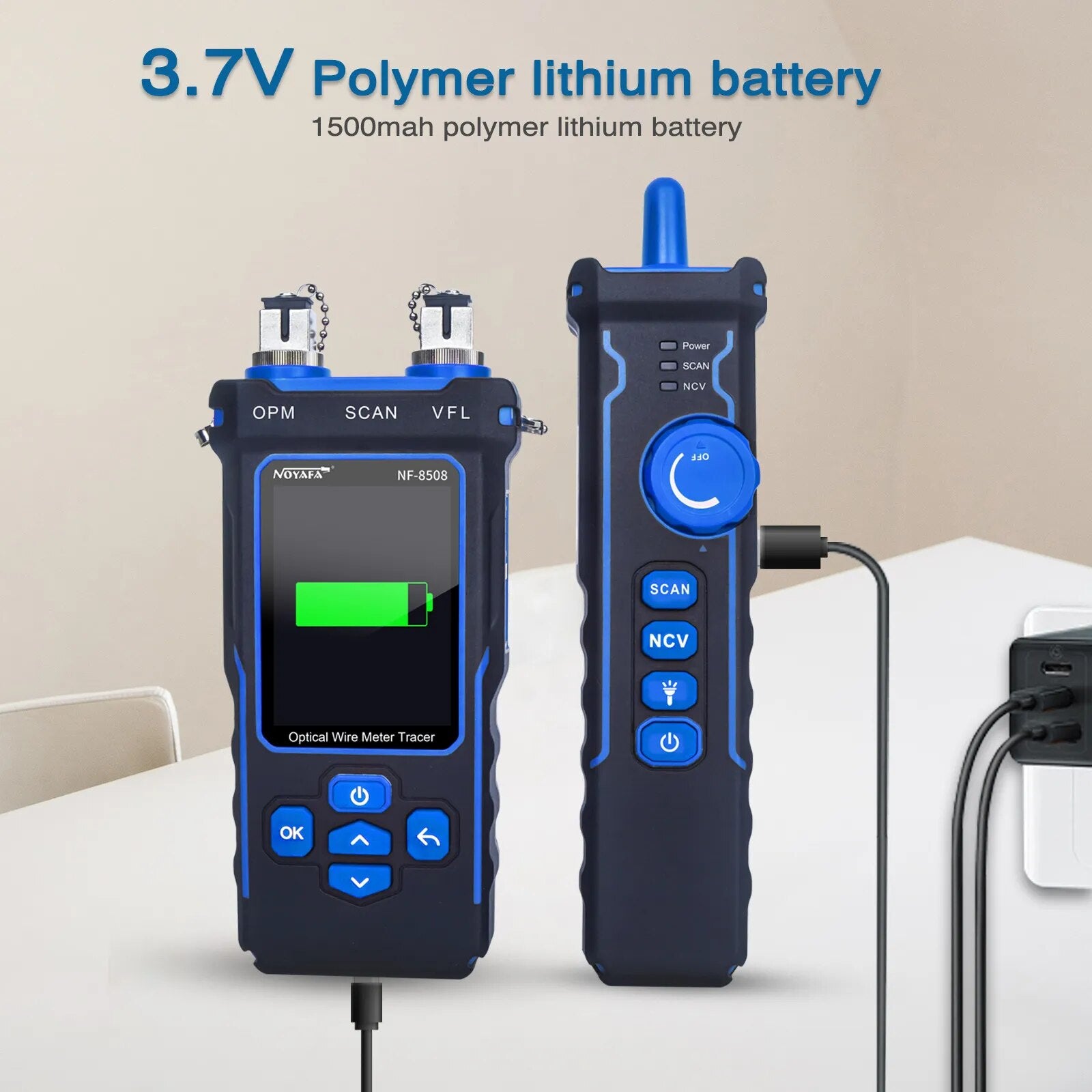

Both the transmitter and receiver are powered by built-in 1500mAh polymer batteries, eliminating the need for frequent battery replacements. The NF-8508 supports Type-C charging, and users can easily monitor battery levels with the charging indicator and low battery indicator.

Customizable Settings

The NF-8508 offers various customizable settings, including backlight brightness levels, backlight time, and auto-off time. This allows users to tailor the device to their specific needs and preferences, enhancing usability during different working conditions.

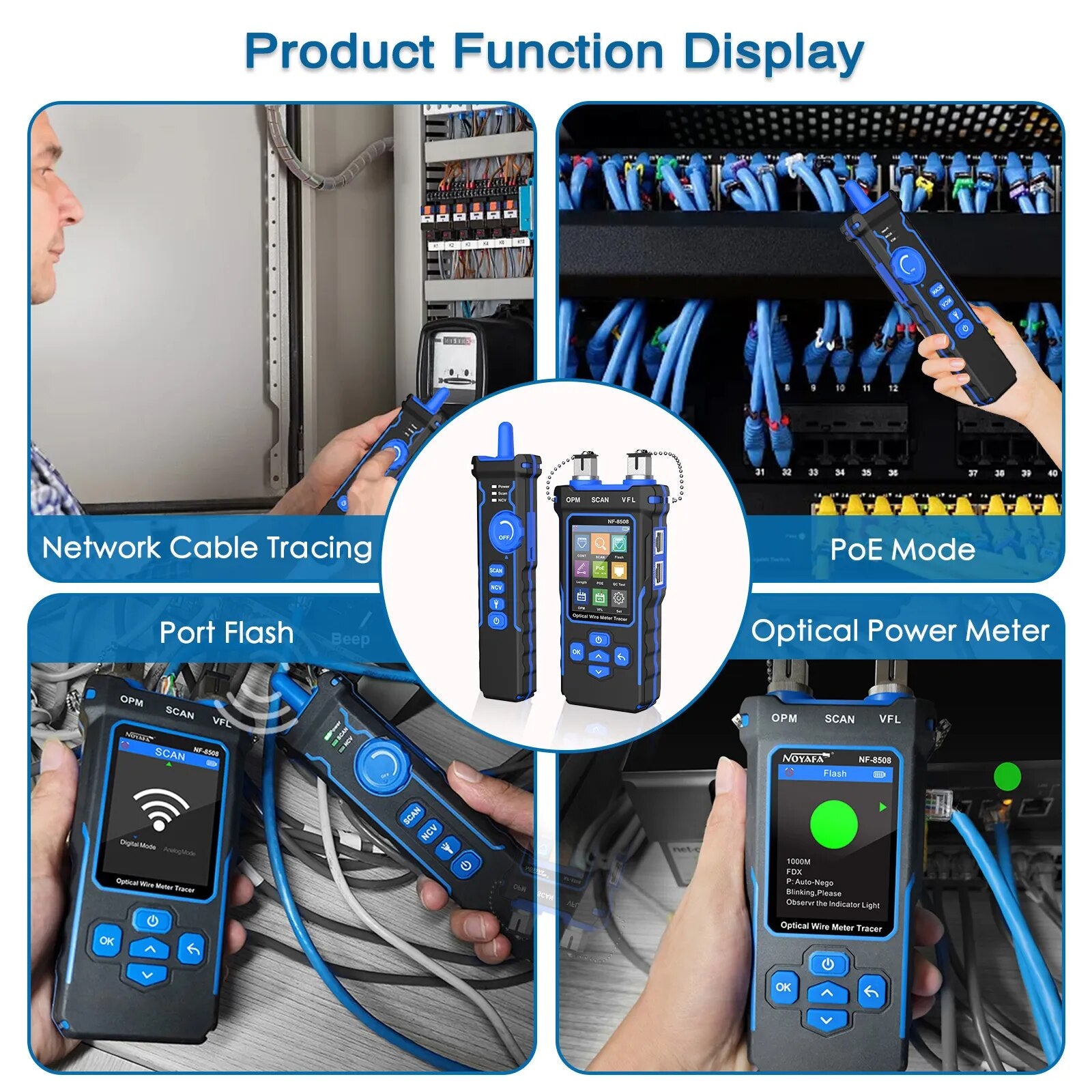

Wide Applications

This network cable tester is suitable for a wide range of applications, including network line engineering and maintenance work for telecommunications, computers, and other metal conductors. Its versatility makes it an invaluable tool for technicians and engineers alike.

Specifications

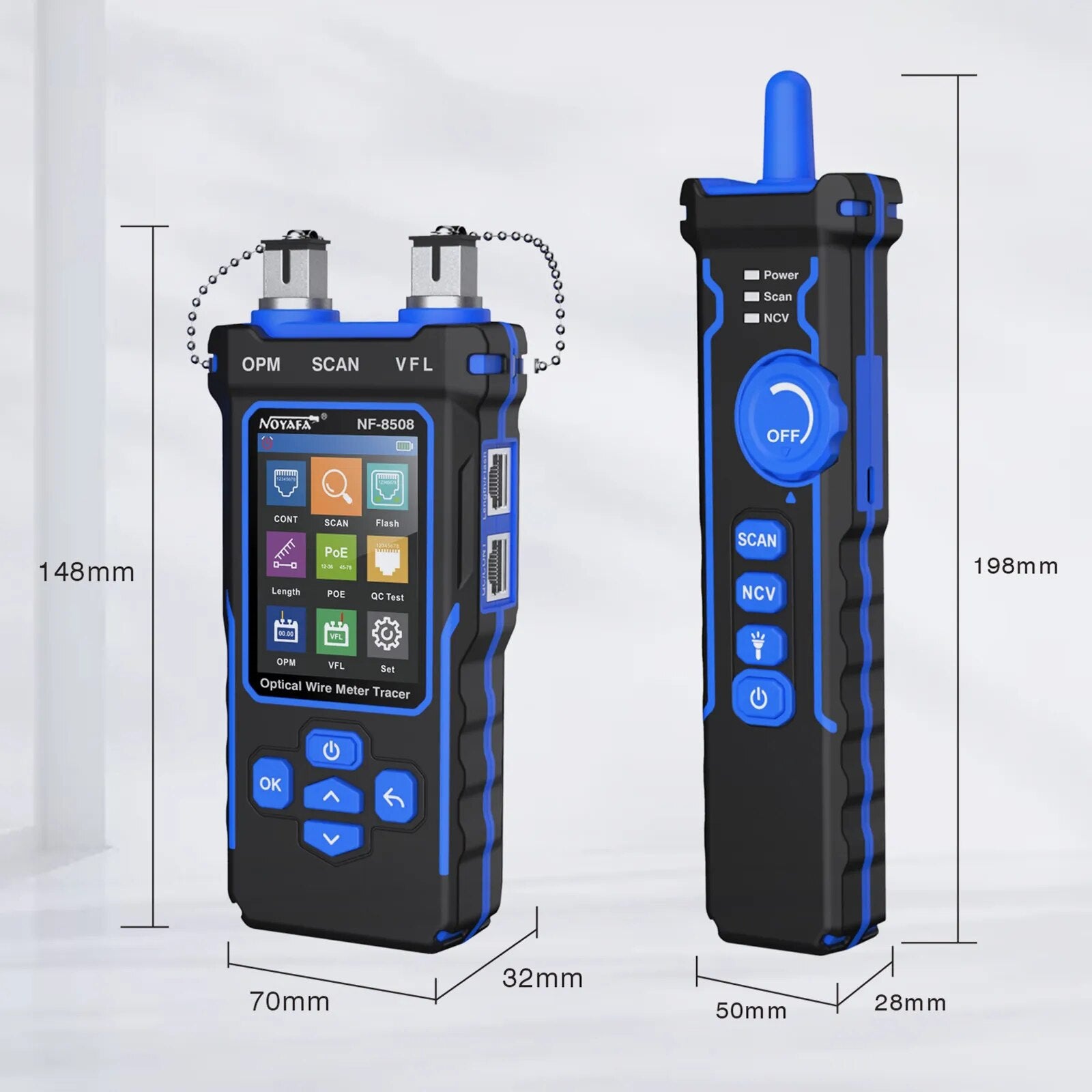

The NF-8508 is constructed from durable ABS material and is compatible with CAT5 and CAT6 cables. It operates at a voltage of 60V and has a compact package size of 24 * 16.5 * 5.5cm, making it easy to transport and store.

Included in the package are the transmitter, receiver, RJ45 and RJ11 adapter lines, crocodile clip test line, Type-C data cable, earphone, carry bag, and an English manual. This comprehensive package ensures that users have everything they need to get started with their network testing tasks.
