Dropship RG11 Coax 100m

The RG11 Coax 100m is a premium coaxial cable designed to deliver exceptional performance in a variety of applications. With its robust construction and advanced materials, this cable ensures high-quality signal transmission, making it an ideal choice for both residential and commercial use.

Construction Details

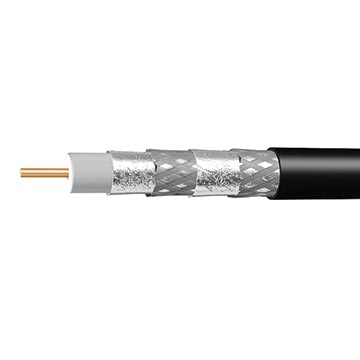

The RG11 Coax features a carefully engineered construction that includes a copper clad steel wire as the inner conductor, providing excellent conductivity and strength. The diameter of the inner conductor is 1.63±0.015 mm, ensuring optimal performance.

Insulation is made from physically foamed polyethylene (PE), with a diameter of 7.11±0.15 mm. This insulation material is designed to minimize signal loss and enhance durability.

The outer conductor consists of multiple layers of shielding, including bonded Al/PET/Al tape and Al-Mg alloy wire braid, which work together to provide superior protection against electromagnetic interference (EMI). The jacket is made from durable PE material, with a diameter of 10.34±0.20 mm, ensuring longevity and resistance to environmental factors.

Mechanical Properties

The RG11 Coax cable is designed to withstand various mechanical stresses. It has a single bending radius of 50 mm and a typical bending radius of 100 mm, allowing for flexible installation options. The pulling strength is rated at 384 N, ensuring that the cable can handle significant tension without damage.

Electrical Properties

This coaxial cable boasts an impedance of 75±3 Ω, making it compatible with a wide range of devices. The direct current resistance (DCR) of the inner conductor is 40.40 Ω/km, while the outer conductor has a DCR of 14.40 Ω/km. The capacitance is measured at 54 pF/m, and the propagation velocity is an impressive 82%.

With a DC breakdown voltage of 6.0 kV and an insulation resistance greater than 1×10⁴ MΩ•km, the RG11 Coax cable is built to handle high voltage applications safely.

Screening Attenuation

The RG11 Coax cable provides excellent screening attenuation, with values exceeding 105 dB at frequencies from 5 to 1000 MHz, 95 dB from 1000 to 2000 MHz, and 85 dB from 2000 to 3000 MHz. This ensures minimal signal loss and interference, making it suitable for high-frequency applications.

Attenuation Characteristics

Attenuation is a critical factor in coaxial cables, and the RG11 Coax demonstrates impressive performance across various frequencies. For instance, at 5 MHz, the maximum attenuation is 1.25 dB/100m, while at 3000 MHz, it reaches 25.86 dB/100m. This low attenuation ensures that signals remain strong over long distances.

Return Loss and Standards Compliance

The return loss of the RG11 Coax cable is ≥20 dB across the frequency range of 5-3000 MHz, indicating excellent signal reflection characteristics. This cable is compliant with UL 1581 UV resistance standards for 720 hours and adheres to the 2011/65/EU directive, ensuring it meets stringent safety and environmental regulations.

Temperature Range

The RG11 Coax cable is designed to operate effectively in a wide temperature range, from -40°C to +70°C. This makes it suitable for both indoor and outdoor installations, providing versatility in various environments.

In summary, the RG11 Coax 100m is a high-performance coaxial cable that combines durability, excellent electrical properties, and superior shielding to ensure reliable signal transmission. Whether for home entertainment systems, commercial installations, or telecommunications, this cable is an excellent choice for achieving optimal performance.
