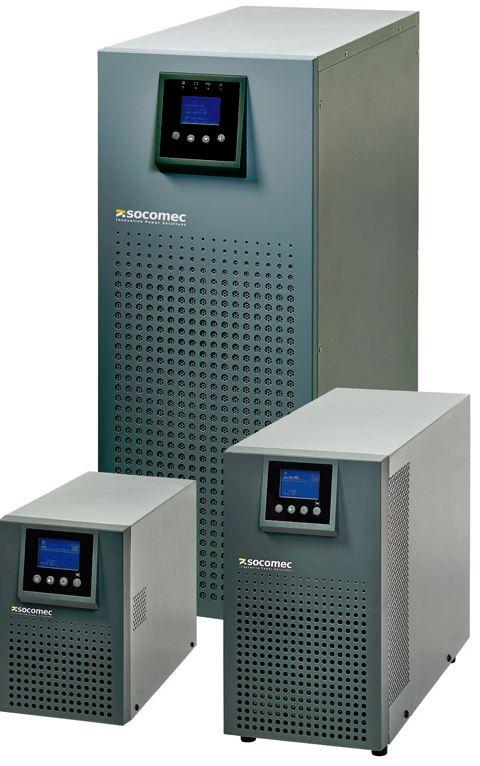

Dropship Socomec ITYS 1kVA Tower LCD UPS

The Socomec ITYS 1kVA Tower LCD UPS is designed to provide reliable power protection for IT and critical industrial applications. This uninterruptible power supply (UPS) is ideal for professional workstations, server and corporate networks, storage systems, industrial automation, security systems, and telecom systems. With its robust features and compact design, the ITYS UPS ensures that your equipment remains operational during power outages and fluctuations.

High Protection and Availability

The ITYS UPS utilizes true online double conversion technology (VFI), which guarantees high availability and total load protection. This technology ensures that the output voltage and frequency are consistently regulated, making the ITYS compatible with various applications and operating environments, including generator sets. In the event of overloads or faults, the automatic bypass feature supplies power to the loads, ensuring uninterrupted operation.

Robust and Versatile Design

This compact tower UPS system is designed to save space in your operating environment. It requires no special configuration upon first startup, allowing for quick and easy deployment. The ITYS UPS features easy connections via IEC 320 sockets or terminals, making it user-friendly. Additionally, its wide input voltage tolerance limits the frequency of switchovers to battery mode, which prolongs the battery life and enhances overall efficiency.

Specifications

• Online Double Conversion
• 1000VA/800W capacity
• Tower-only design
• USB + RS232 communication ports
• Optional SNMP card available
• 3 x 10A IEC outlets
• Includes various input/output cords

Rear View Connections

The rear view of the ITYS UPS includes multiple connection options, such as:

• USB serial port
• RS232 serial port
• EPO (Emergency Power Off)
• Dry contact interface (DB9)
• Slot for optional communication boards
• Manual bypass
• Input protection (thermal breaker)
• Battery fuse holder
• Castor wheel with security lock
• Input, output, and external battery terminal board
• Connection for modular battery extension

Technical Data

The ITYS UPS is available in various models, including those with and without internal batteries. The models with internal batteries provide a backup time of up to 17 minutes at 75% load, depending on the specific model. The UPS operates efficiently with a power factor of 0.98 and has a rated voltage of 230V.

Battery and Communication

The ITYS UPS uses sealed lead-acid maintenance-free batteries, with an expected life of 3 to 5 years. The UPS features RS232 and USB interfaces for communication, and an optional NET VISION (TCP/IP & SNMP) card for enhanced network management capabilities. Local communication software is also available for monitoring and management.

Efficiency and Environment

This UPS operates with an efficiency of up to 92% in online mode. It is designed to function in ambient temperatures ranging from 0°C to +40°C, with a relative humidity of less than 95% (non-condensing). The ITYS UPS is also designed to operate at altitudes of up to 1000 meters without de-rating.

UPS Cabinet Specifications

The dimensions of the ITYS UPS vary by model, with weights ranging from 7 kg to 84 kg depending on the configuration. The degree of protection is rated at IP20, ensuring durability and reliability in various environments.

Standards and Warranty

The Socomec ITYS UPS complies with safety standards EN 62040-1 and EMC standards EN 62040-2. It comes with a 2-year limited warranty, providing peace of mind for your investment.
