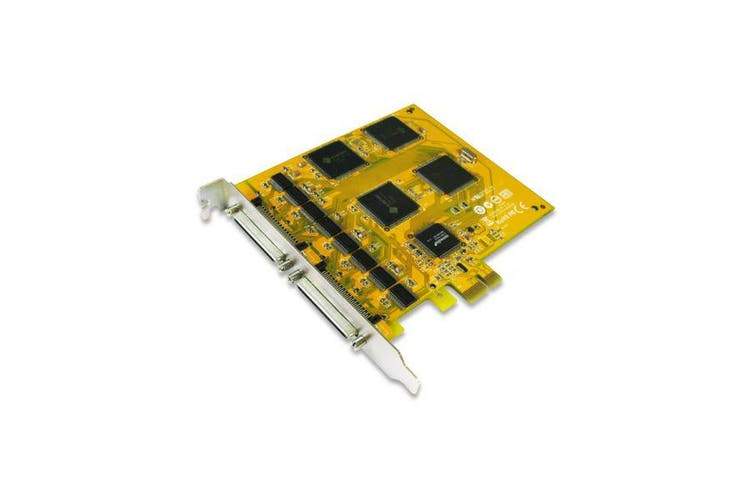

Dropship SUNIX 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps,

The SUNIX 16-port RS-232 High Speed PCI Express Serial Board is an essential component for any system requiring multiple serial connections. With the capability to expand your system with 16 independent RS-232 serial ports, this board is designed to deliver high-speed communication at rates of up to 921.6Kbps. Whether you are working with industrial equipment, point-of-sale systems, or any application that requires reliable serial communication, this board is an excellent choice.

High-Speed Performance

Equipped with the SUN1999 16C950 compatible UART controller, the SUNIX serial board ensures that your data transmission is not only fast but also reliable. The board supports a wide range of baud rates from 50bps to 921.6Kbps, making it versatile for various applications. This high-speed capability is crucial for environments where data integrity and speed are paramount.

Compatibility and Support

This serial board is designed to work seamlessly with major operating systems including Microsoft Windows, Linux, and DOS. This broad compatibility ensures that you can integrate the board into your existing systems without any hassle. The Plug-n-Play feature allows for easy installation, with the I/O address and IRQ automatically assigned by the BIOS, simplifying the setup process.

Robust Protection Features

One of the standout features of the SUNIX 16-port RS-232 board is its built-in ±15KV ESD protection for all serial signals. This protection meets the IEC1000-4-2 standard, ensuring that your equipment is safeguarded against electrostatic discharge, which can cause significant damage to sensitive electronic components. This feature is particularly important in industrial settings where static electricity can be a concern.

Flexible Configuration Options

The board supports various configurations with PCI Express Base Specification Revision 1.1, accommodating x1, x2, x4, x8, and x16 lane PCI Express Bus connector keys. This flexibility allows you to choose the best configuration for your specific needs, ensuring optimal performance and compatibility with your system.

Technical Specifications

In terms of technical specifications, the SUNIX 16-port RS-232 board features a standard PCB dimension of 120 x 110 mm and a bracket size of 121 mm. The board supports various stop bits (1, 1.5, 2) and parity options (even, odd, none, mark, space), providing you with the flexibility to configure the serial communication to meet your requirements. Additionally, the board includes a FIFO buffer of 128 bytes, enhancing data handling capabilities.

Certification and Compliance

The SUNIX 16-port RS-232 High Speed PCI Express Serial Board is certified by CE, FCC, RoHS, and Microsoft WHQL, ensuring that it meets high standards for quality and safety. This certification provides peace of mind that you are investing in a reliable and compliant product.

In summary, the SUNIX 16-port RS-232 High Speed PCI Express Serial Board is an ideal solution for expanding your system's serial communication capabilities. With its high-speed performance, robust protection features, and broad compatibility, it is designed to meet the demands of various applications while ensuring reliability and ease of use.
