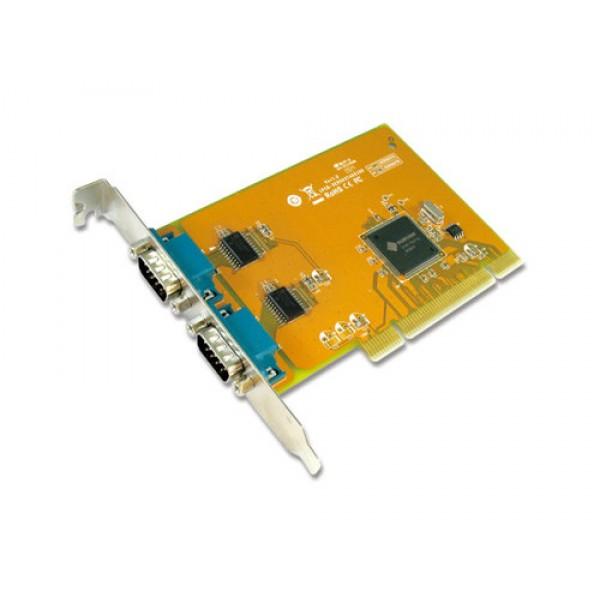

Dropship SUNIX COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card; speeds up

The SUNIX COMCARD-2P SER5037A Dual Port Serial IO Card is an essential upgrade for any system requiring reliable serial communication. This PCI card is designed to enhance your computer's connectivity options, allowing for seamless integration with various devices. With support for speeds up to 115.2Kbps, it ensures efficient data transfer for all your serial communication needs.

Key Features

This dual port RS-232 Universal PCI Serial Board is equipped with the SUNIX SUN1989 controller, which is compatible with the 16C950 UART. This compatibility ensures that the card can handle a wide range of applications, making it a versatile choice for both personal and professional use. The card operates on a universal PCI bus, supporting both 64-bit and 32-bit systems, and is compatible with 3.3V and 5V PCI versions (3.0, 2.3, 2.2, 2.1).

Port Specifications

The SUNIX COMCARD-2P features two ports, allowing for multiple connections simultaneously. Each port is assigned IRQ and IO by the system, ensuring optimal performance without conflicts. The card supports a variety of baud rates ranging from 50 bps to 115.2 Kbps, making it suitable for various applications, from simple data logging to complex industrial automation tasks.

Data and Flow Control

Users can configure data bits (5, 6, 7, or 8), stop bits (1, 1.5, or 2), and parity options (None, Even, Odd, Space, Mark) according to their specific requirements. The card also supports multiple flow control methods, including None, Xon/Xoff, and RTS/CTS, providing flexibility for different communication protocols.

Robust Protection

One of the standout features of the SUNIX COMCARD-2P is its ±2KV ESD protection for each signal. This ensures that your devices are safeguarded against electrostatic discharge, which can cause significant damage to electronic components. The card is designed to operate in a wide range of environments, with an operational temperature range of 0 to 60°C (32 to 140°F) and humidity levels of 5 to 95% RH.

Driver Support

The SUNIX COMCARD-2P is compatible with a variety of operating systems, including Microsoft Windows (XP, Vista, 7, 8.x, 10), Windows Server (2003, 2008, 2012, 2016), Linux (2.x, 3.x, 4.x), DOS, FreeBSD, QNX, and even IBM OS/2 WARP. This extensive compatibility makes it an ideal choice for users with diverse system requirements.

Regulatory Approvals

This PCI card meets several regulatory standards, including EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, and FCC Part 15 Class B. It is also compliant with BSMI: CNS13438 and RoHS regulations, ensuring that it adheres to environmental and safety standards.

Installation and Dimensions

The SUNIX COMCARD-2P is designed for easy installation, fitting into standard PCI slots. The PCB dimensions are 120 x 82 mm, with a bracket standard of 121 mm. This compact design allows for efficient use of space within your computer case.

In summary, the SUNIX COMCARD-2P SER5037A Dual Port Serial IO Card is a powerful and versatile solution for enhancing your system's serial communication capabilities. With its robust features, extensive compatibility, and reliable performance, it is an excellent choice for anyone looking to upgrade their connectivity options.
