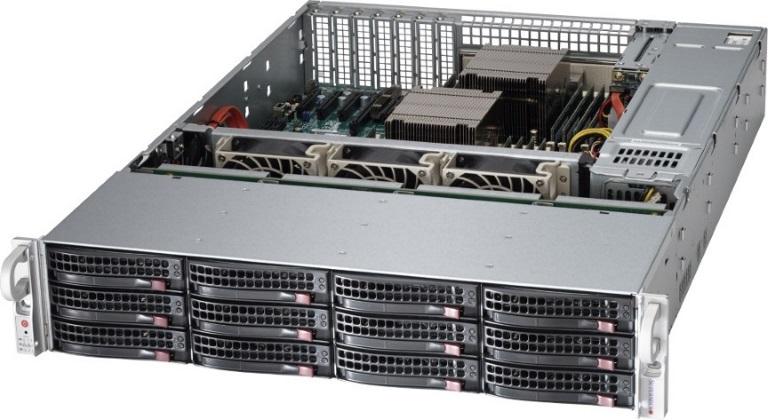

Dropship SUPERMICRO SuperServer 6029P-E1CR12H, 2U Rackmount, Dual Socket

The SUPERMICRO SuperServer 6029P-E1CR12H is a high-performance 2U rackmount server designed for demanding enterprise applications. This server is equipped with dual socket support for Intel® Xeon® Scalable processors, allowing for exceptional processing power and efficiency. With a maximum of 28 cores per processor and support for Intel® Hyper-Threading Technology, this server is capable of handling intensive workloads with ease.

Advanced Memory Capabilities

The SuperServer 6029P-E1CR12H features 16 DIMM slots, supporting up to 2TB of ECC 3DS LRDIMM or 512GB of ECC RDIMM memory. This extensive memory capacity ensures that your applications run smoothly, even under heavy loads. The server supports DDR4 memory speeds of up to 2666MHz, providing fast data access and improved performance.

Robust Storage Options

Equipped with advanced storage capabilities, the SuperServer 6029P-E1CR12H includes SAS3 (12Gbps) and SATA3 (6Gbps) interfaces. The server supports various RAID configurations, including RAID 0, 1, 5, 6, 10, 50, and 60, ensuring data redundancy and performance optimization. This flexibility allows you to tailor your storage solutions to meet your specific needs.

Networking and Connectivity

Networking is a breeze with dual 10GBase-T LAN ports powered by Intel X722 + PHY and Intel X557. This ensures high-speed connectivity for data-intensive applications. Additionally, the server includes a dedicated IPMI LAN port for remote management, allowing for efficient monitoring and control of the server environment.

Comprehensive Management Features

The SuperServer 6029P-E1CR12H comes with a suite of management tools, including Intel® Node Manager and IPMI 2.0 support. These features enable effective monitoring of system health, including CPU core temperatures, voltages, and memory status. The server also includes SuperDoctor® 5 for real-time health monitoring and alerts.

Efficient Cooling and Power Management

Thermal management is critical in high-performance servers, and the SuperServer 6029P-E1CR12H excels in this area. It features a 4+1 phase-switching voltage regulator and fans with tachometer monitoring to ensure optimal cooling. The server's design includes pulse width modulation (PWM) fan connectors for precise control of fan speeds, maintaining an ideal operating temperature.

Physical Specifications

This 2U rackmount server has dimensions of 17.2 inches (437mm) in width, 3.5 inches (89mm) in height, and 24.8 inches (630mm) in depth, making it suitable for standard server racks. With a gross weight of 61 lbs (27.7 kg), it is robust yet manageable for installation and maintenance.

Front Panel Features

The front panel of the SuperServer 6029P-E1CR12H includes essential buttons such as the power on/off button and system reset button. It also features various LEDs to indicate power status, hard drive activity, network activity, system overheat, and power failure, providing clear visibility into the server's operational status.

Expansion Capabilities

For businesses looking to expand their server capabilities, the SuperServer 6029P-E1CR12H offers PCI-Express expansion slots, including a PCI-E 3.0 x16 slot and additional PCI-E 3.0 slots. This allows for the addition of various expansion cards to enhance functionality, such as additional network interfaces or storage controllers.

In summary, the SUPERMICRO SuperServer 6029P-E1CR12H is a powerful and versatile server solution, ideal for enterprises requiring high performance, reliability, and scalability. Its advanced features and robust design make it a top choice for data centers and businesses looking to optimize their IT infrastructure.
