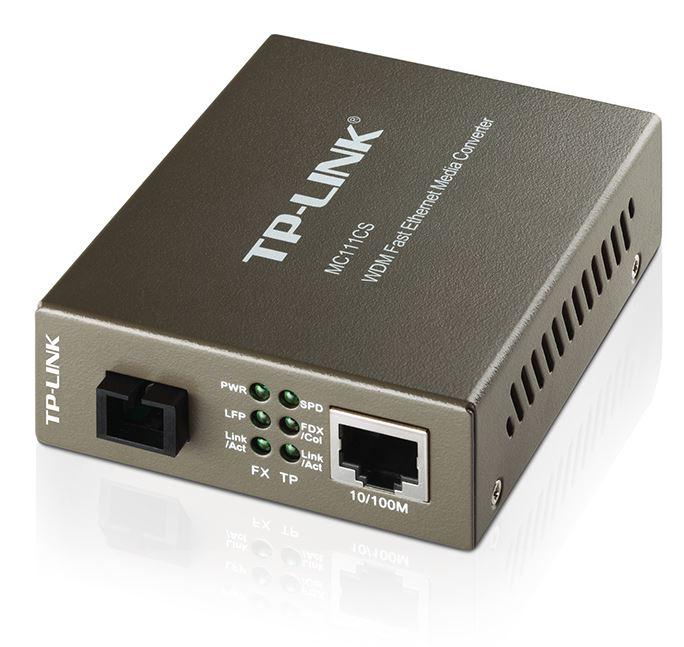

Dropship TP-LINK MC111CS 10/100Mbps SC WDM Media Converter Monomode Simplex

The TP-LINK MC111CS 10/100Mbps SC WDM Media Converter is an essential device for anyone looking to enhance their network infrastructure. This media converter is designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa, making it a versatile solution for various networking needs. With its advanced WDM (Wavelength Division Multiplexing) technology, the MC111CS allows for simultaneous data transmission and reception over a single fiber cable, significantly reducing cabling costs and complexity.

Key Features of TP-LINK MC111CS

One of the standout features of the TP-LINK MC111CS is its compliance with IEEE 802.3u 10/100Base-TX and 100Base-FX standards. This ensures that the device operates seamlessly within existing network setups, providing reliable performance and connectivity. The media converter supports both half and full-duplex transfer modes for the FX port, allowing for flexible network configurations.

Additionally, the MC111CS is equipped with Link Fault Passthrough and Far End Fault capabilities. These features minimize the loss caused by link failures, ensuring that your network remains stable and operational even in the event of a fault. The device also includes LED indicators for power, link activity, and speed, providing users with real-time feedback on the status of their connections.

Technical Specifications

The TP-LINK MC111CS operates at a wavelength of 1550nm for transmission and 1310nm for reception, making it suitable for long-distance data transmission. It can extend fiber distances up to 20 kilometers, making it an ideal choice for businesses and organizations that require reliable connectivity over long distances.

In terms of connectivity, the MC111CS features one 100M SC/UPC port and one 100M RJ45 port, which supports Auto MDI/MDIX. This allows for easy integration into existing network setups without the need for additional configuration. The device is compatible with various network media, including UTP category 3, 4, 5 cables, and single-mode fiber, ensuring versatility in deployment.

Power and Environmental Considerations

The TP-LINK MC111CS is powered by an external power adapter with a maximum power consumption of just 2.49W. This energy-efficient design not only helps reduce operational costs but also contributes to a more sustainable network environment. The device is designed to operate in a wide range of temperatures, from 0℃ to 40℃ (32℉ to 104℉), and can be stored in conditions ranging from -40℃ to 70℃ (-40℉ to 158℉). Its operating humidity range of 10% to 90% non-condensing ensures that it can function effectively in various environments.

Applications of TP-LINK MC111CS

The TP-LINK MC111CS is ideal for a variety of applications, including connecting remote offices, extending network reach in large facilities, and integrating fiber optic connections into existing copper networks. Its compact design and ease of use make it suitable for both small businesses and larger enterprises looking to enhance their network capabilities.

In summary, the TP-LINK MC111CS 10/100Mbps SC WDM Media Converter is a powerful and efficient solution for converting fiber to copper media. With its advanced features, compliance with industry standards, and ability to extend distances up to 20km, it is an excellent choice for anyone looking to improve their network infrastructure.
