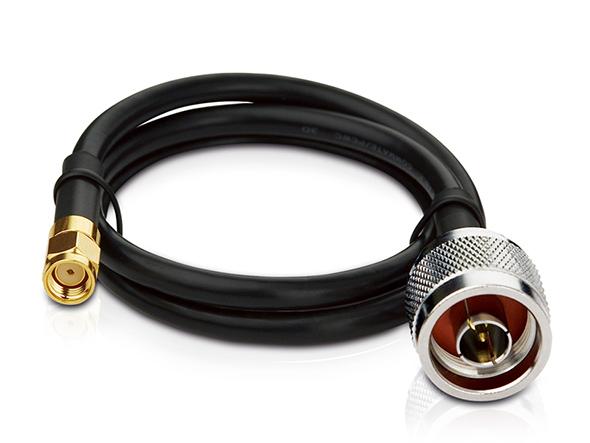

Dropship TP-LINK TL-ANT200PT 0.5M Low-loss N-Type Male to RP-SMA Male Pigtail

The TP-LINK TL-ANT200PT 0.5M Low-loss N-Type Male to RP-SMA Male Pigtail Cable is an essential accessory for enhancing your wireless network performance. Designed to provide a reliable connection between your wireless access point (AP) or router and antenna, this pigtail cable is compliant with both 2.4GHz 802.11 n/g/b and 5GHz 802.11 n/a standards. Its low-loss design ensures minimal signal degradation, making it an excellent choice for both home and professional use.

Key Features

This pigtail cable features a length of 0.5 meters (1.64 feet), which is ideal for various installation scenarios. The N-Type Male to RP-SMA Male connector configuration allows for easy connectivity to a wide range of antennas and devices. The cable is manufactured using high-quality materials that ensure durability and longevity, even in outdoor environments.

Performance Specifications

The TP-LINK TL-ANT200PT is engineered for optimal performance across different frequency bands. It operates effectively within a frequency range of DC to 6GHz, with a nominal impedance of 50Ω. The insertion loss is impressively low, with values of 0.7dB at 2GHz, 0.8dB at 2.5GHz, 1.0dB at 3GHz, 1.2dB at 5GHz, 1.3dB at 5.5GHz, and 1.4dB at 6.0GHz. This low insertion loss ensures that your wireless signals remain strong and clear, providing a better overall experience.

VSWR and Temperature Ratings

The Voltage Standing Wave Ratio (VSWR) is a crucial factor in determining the efficiency of a cable. The TL-ANT200PT boasts a maximum VSWR of 1.5:1 for frequencies up to 3GHz and 1.6:1 for frequencies between 3GHz and 6GHz. These ratings indicate that the cable maintains excellent signal integrity, minimizing reflections and losses.

In terms of temperature resilience, this pigtail cable can operate in a wide range of conditions, with an operating temperature of -10℃ to +60℃ and a storage temperature of -40℃ to +80℃. This makes it suitable for various outdoor applications, ensuring reliable performance even in extreme weather conditions.

Applications

The TP-LINK TL-ANT200PT is perfect for connecting wireless access points, routers, and antennas in both residential and commercial settings. Whether you are setting up a home network, enhancing your office's wireless coverage, or deploying a robust outdoor wireless solution, this pigtail cable is designed to meet your needs. Its weatherproof design ensures that it can withstand the elements, making it an ideal choice for outdoor installations.

Conclusion

In summary, the TP-LINK TL-ANT200PT 0.5M Low-loss N-Type Male to RP-SMA Male Pigtail Cable is a high-performance solution for anyone looking to improve their wireless connectivity. With its low-loss design, excellent insertion loss specifications, and durable construction, this cable is a reliable choice for enhancing your wireless network.
