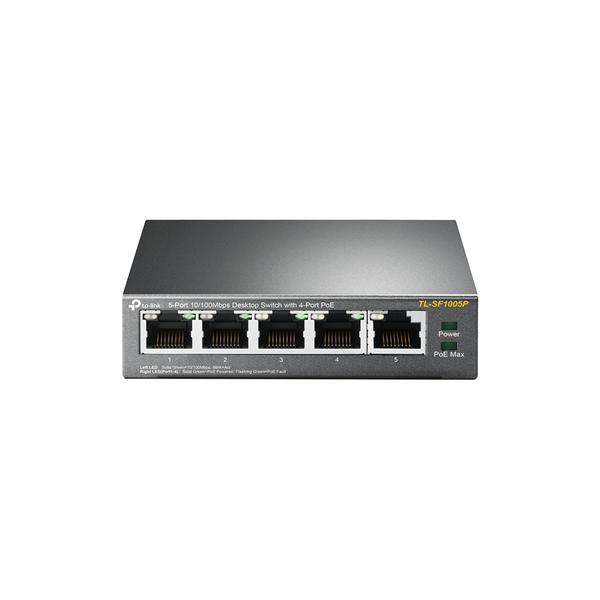

Dropship TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

The TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch is an essential networking device designed for small to medium-sized businesses and home offices. With its 5 10/100Mbps ports, this unmanaged switch allows for seamless connectivity without the need for complex configuration. The standout feature of this switch is its 4 Power over Ethernet (PoE) ports, which enable you to power devices such as IP cameras, access points, and IP phones directly through the Ethernet cable, eliminating the need for additional power outlets.

Power over Ethernet (PoE) Functionality

The TL-SF1005P supports the IEEE 802.3af standard, allowing it to automatically detect and supply power to compliant Powered Devices (PDs). This feature is particularly beneficial in locations where power outlets are scarce or difficult to access. By transmitting both data and power over a single cable, you can simplify your network setup and reduce clutter.

Overload Protection

One of the key advantages of the TL-SF1005P is its overload arrangement feature. In scenarios where the total power consumption of connected PoE devices exceeds 58W, the switch prioritizes power distribution among the ports. This ensures that the most critical devices remain powered while protecting the system from potential overload damage. For instance, if all ports are in use and the power demand exceeds the limit, the switch will automatically cut off power to the lowest-priority port, ensuring stable operation.

Specifications and Features

The TP-Link TL-SF1005P is equipped with 5 RJ45 ports that support auto-negotiation and auto-MDI/MDIX, making it easy to connect various devices without worrying about cable types. The switch operates silently due to its fanless design, making it suitable for office environments where noise levels need to be kept to a minimum.

In terms of physical specifications, the switch measures 3.9 x 3.9 x 1.0 inches (99.8 x 98 x 25 mm) and is lightweight, allowing for easy placement on a desk or mounted on a wall. The external power supply provides 48VDC / 1.25A, ensuring efficient power delivery to connected devices.

Advanced Features

The TL-SF1005P also includes advanced features such as MAC address auto-learning and auto-aging, which help maintain an efficient network by automatically updating the MAC address table. Additionally, it supports IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, enhancing data transmission reliability.

Environmental Considerations

This switch is designed to operate in a wide range of environmental conditions, with an operating temperature range of 0°C to 40°C (32°F to 104°F) and a storage temperature range of -40°C to 70°C (-40°F to 158°F). It also supports a humidity range of 10% to 90% RH non-condensing, making it suitable for various settings.

Certification and Warranty

The TP-Link TL-SF1005P is certified by FCC, CE, and RoHS, ensuring that it meets international safety and environmental standards. Additionally, it comes with a 5-year warranty, providing peace of mind for users investing in this reliable networking solution.

In summary, the TP-Link TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an excellent choice for anyone looking to expand their network capabilities while ensuring efficient power management for connected devices. Its user-friendly design, advanced features, and robust performance make it a valuable addition to any network setup.
