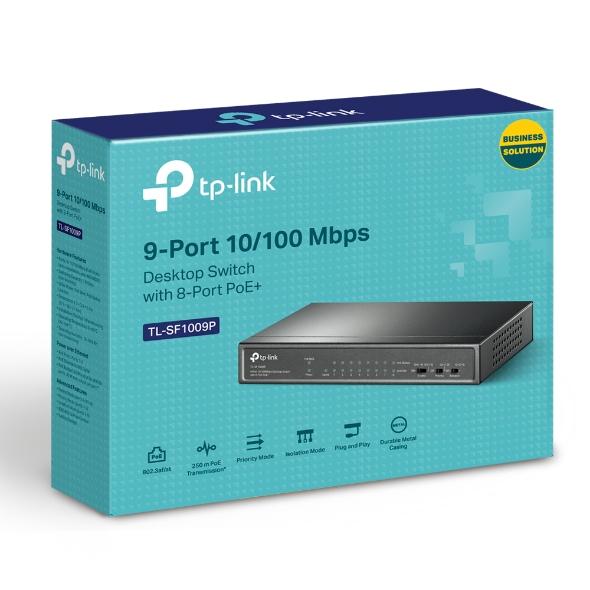

Dropship TP-LINK TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

The TP-LINK TL-SF1009P is a versatile 9-port desktop switch designed to meet the demands of modern networking environments. With 8 of its 9 ports supporting Power over Ethernet (PoE+), this switch is ideal for powering devices such as IP cameras, wireless access points, and VoIP phones while providing reliable data connectivity. The TL-SF1009P operates at 10/100 Mbps, ensuring fast and efficient data transfer for your network needs.

Key Features

This switch features 9× 10/100 Mbps RJ45 ports, with 8 of them being PoE+ compliant. Each PoE port can deliver up to 30W of power, making it suitable for powering various devices without the need for additional power sources. The total power budget for the switch is 65W, allowing for multiple devices to be powered simultaneously.

Extended Range and Performance

One of the standout features of the TL-SF1009P is its Extend Mode, which allows for data and power transmission over distances of up to 250 meters. This is particularly useful in larger installations where devices may be located far from the switch. The switch also includes a Priority Mode, ensuring that ports 1 and 2 receive high priority for sensitive applications, enhancing the quality of service for critical devices.

Security and Isolation

For enhanced security and performance, the TL-SF1009P includes an Isolation Mode that allows for one-click client traffic separation. This feature is essential in environments where security is a concern, as it helps to prevent unauthorized access between devices connected to the switch.

Easy Setup and Management

Setting up the TP-LINK TL-SF1009P is a breeze, thanks to its plug-and-play design. There is no configuration required, making it an excellent choice for users who need a straightforward solution for their networking needs. The switch is also fanless, ensuring quiet operation, which is ideal for office environments.

Hardware Specifications

The physical dimensions of the TL-SF1009P are compact, measuring 6.7 × 3.9 × 1.1 inches (171 × 98 × 27 mm), making it suitable for desktop placement. It features a security lock for added physical security and comes with an external power adapter that outputs 53.5VDC / 1.31A. The switch supports a maximum power consumption of 77.08W when fully loaded with PoE devices.

Advanced Networking Features

In addition to its basic functionalities, the TL-SF1009P supports advanced networking features such as MAC address auto-learning and auto-aging, ensuring efficient management of network traffic. It also complies with IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, providing reliable data transmission.

Overall, the TP-LINK TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ is an excellent choice for businesses and home users looking for a reliable, efficient, and easy-to-use networking solution. Its combination of power, performance, and security features makes it a standout product in the market.
