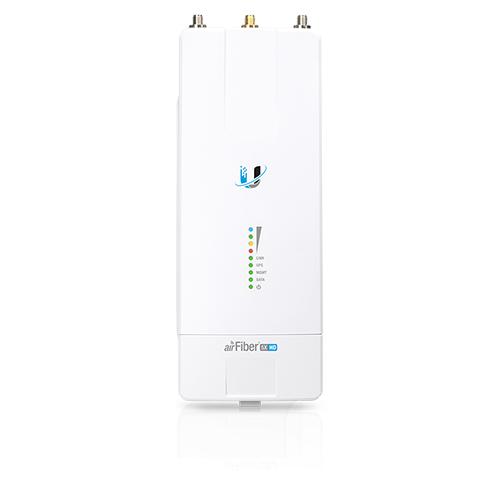

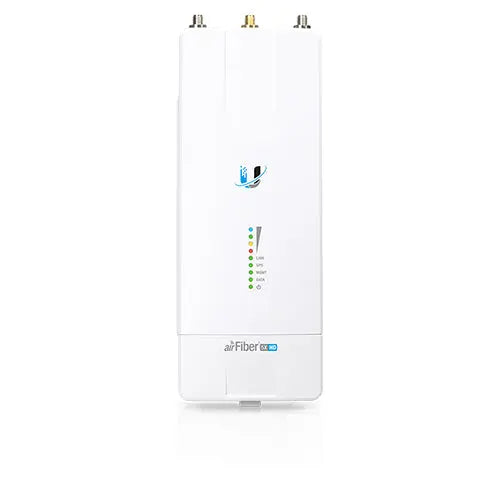

Dropship UBIQUITI AirFiber 5XHD - Long Range 5GHz Carrier Back-Haul Radio -

The UBIQUITI AirFiber 5XHD is a cutting-edge long-range 5GHz carrier back-haul radio designed to revolutionize wireless broadband connectivity. Utilizing advanced LTU technology, this radio overcomes the limitations of traditional 802.11 Wi-Fi technology, providing users with enhanced performance and reliability.

Advanced Features of AirFiber 5XHD

One of the standout features of the AirFiber 5XHD is its ability to operate in the 5 GHz frequency band, which allows for greater channel bandwidths of up to 100 MHz. This capability is essential for users who require high-speed data transmission over long distances. When paired with a compatible Ubiquiti airFiber X antenna or RocketDish antenna, the AF-5XHD delivers a complete Point-to-Point (PtP) solution that is both efficient and effective.

The radio's programmable transmit power level can be adjusted up to +29 dBm, allowing users to optimize their signal strength based on their specific needs. Additionally, the AF-5XHD features a programmable duty cycle, enabling configuration of asymmetric TX and RX duty cycles. This flexibility is crucial for managing bandwidth and ensuring optimal performance in various environments.

Configurable GPS Synchronization

Another significant advantage of the AirFiber 5XHD is its configurable GPS synchronization. Users can select frame sizes of 2, 2.5, 4, and 5 ms, ensuring compatibility with other synchronous systems. This feature is particularly beneficial for applications that require precise timing and coordination.

The radio also supports split TX and RX frequencies, allowing it to operate on different frequencies for transmission and reception. This capability is vital for avoiding interference and enhancing overall performance. Furthermore, the AirFiber 5XHD supports different channel bandwidths for TX and RX, enabling users to scale their required data capacity more efficiently.

Adaptive Modulation and Ethernet Ports

With adaptive modulation rates of up to 1024QAM (and a targeted upgrade to 4096QAM), the AirFiber 5XHD ensures that users can achieve optimal data rates under varying conditions. This adaptability is essential for maintaining high performance in dynamic environments.

The device is equipped with dual redundant Gigabit Ethernet ports that provide Power over Ethernet (PoE). This feature enhances reliability by ensuring that the radio remains powered even if one of the ports fails. Additionally, the AirFiber 5XHD supports OFDM and OFDMA, offering flexible scheduling for 2, 4, or 8 subchannels, which is crucial for efficient data transmission.

Wireless Configuration and Security Features

For added convenience, the AirFiber 5XHD includes a built-in Bluetooth interface that allows for wireless configuration. This feature simplifies the setup process and enables users to manage their devices without the need for physical connections.

Security is also a top priority with the AirFiber 5XHD. The AlignLock™ Antenna Aiming Guard alerts users if the radio or antenna aiming is altered due to tampering, impact, or storm damage. This feature ensures that users can maintain optimal performance and security at all times.

User-Configurable Interference Mitigation

To further enhance performance, the AirFiber 5XHD offers user-configurable interference mitigation with three selectable profiles. This capability allows users to tailor their settings based on their specific environment and requirements, ensuring that they can achieve the best possible performance.

In summary, the UBIQUITI AirFiber 5XHD is an exceptional long-range 5GHz carrier back-haul radio that combines advanced technology with user-friendly features. Its programmability, adaptability, and robust design make it an ideal choice for users seeking reliable and high-performance wireless connectivity.
